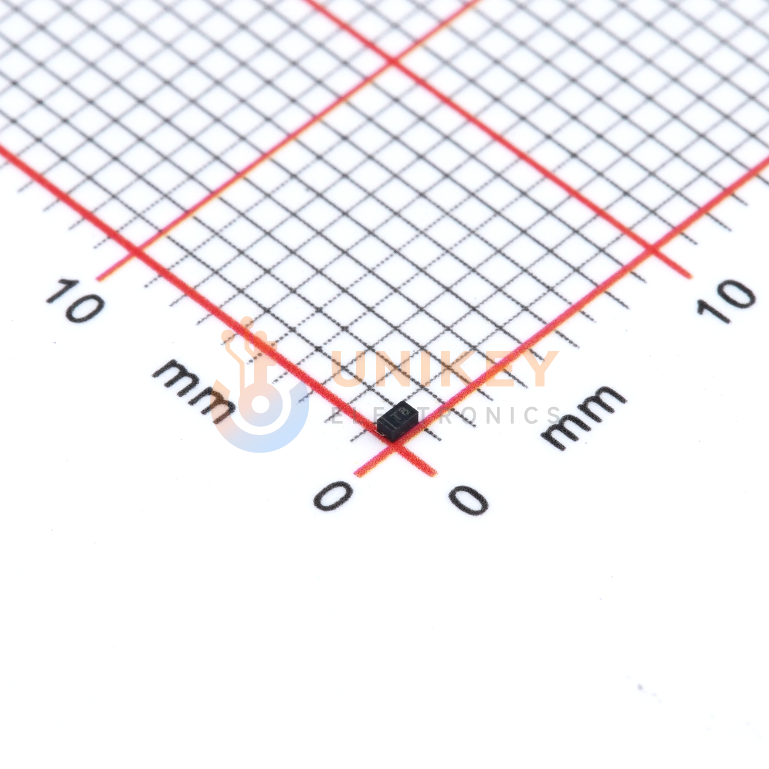

DIODES 1N4448HLP-7 image
Images are for reference only

1N4448HLP-7

Discrete Diode 80V 2A 4ns 100nA 125mA DFN-1006-2 SMD 1mm × 600μm × 500μm

Other Names:1N4448HLP-7

more
1N4448HLP7

Manufacturer:DIODES

Manufacturer Part:1N4448HLP-7

Email Document
ECAD Model:

In Stock

5 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.04

Ext. Price (USD)

$0.04

Total price$0.04
MOQ1Mult1SPQ3,000DC24+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.04
$0.04
200
$0.0259
$5.18
1,500
$0.0225
$33.75
3,000
$0.0198
$59.40
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Manufacturer
Capacitance @ Vr, F
3pF @ 0.5V, 1MHz
Current - Average Rectified (Io)
125mA
Current - Reverse Leakage @ Vr
100 nA @ 80 V
Reverse Recovery Time (trr)
4 ns
Voltage-DC Reverse (Vr) (Max)
80 V
Voltage - Forward (Vf) (Max) @ If
1 V @ 100 mA
Operating Temperature - Junction
-65°C ~ 150°C
Package/Case
0402 (1006 Metric)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
1N4448
Mounting Type
Surface Mount
Rid
937176
Series
-
Speed
Small Signal =< 200mA (Io), Any Speed
Supplier Device Package
X1-DFN1006-2
Technology
Standard
