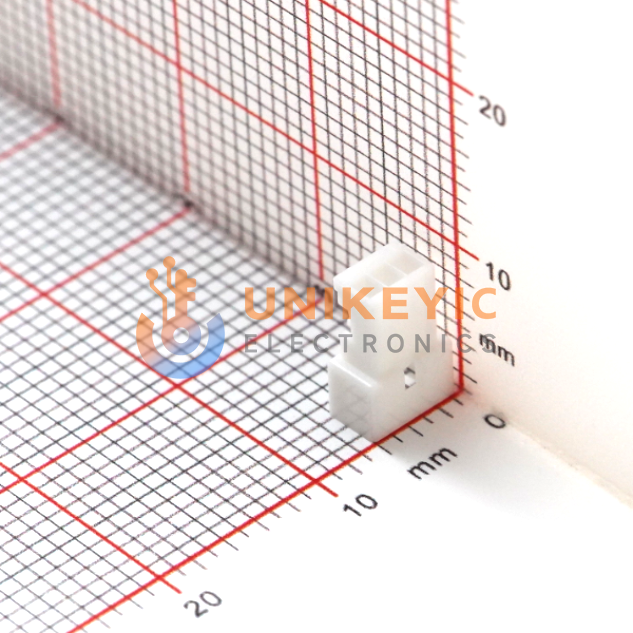

Molex 510470300 image
Images are for reference only

510470300

Molex Connector Housing, 3-Way, 1.25mm Pitch, 1 Row

Other Names:'0510470300

more
510470300
51047-0300
0510470300

Manufacturer:Molex

Manufacturer Part:510470300

Email Document
ECAD Model:

In Stock

39,855 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0977

Ext. Price (USD)

$0.48

Total price$0.48
MOQ5Mult5SPQ1,000DC2634+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0977
$0.48
50
$0.0845
$4.22
150
$0.072
$10.80
500
$0.0646
$32.30
1,000
$0.0627
$62.70
3,000
$0.0592
$177.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Manufacturer
Operating Temperature
-40°C ~ 85°C
Connector Type
Plug
Contact Termination
Crimp
Contact Type
Male Pin
Color
Natural
Insulation Material
Polyester
Packaging
Bulk
Pitch
0.049" (1.25mm)
Row Spacing
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
051047
Fastening Type
-
Features
-
Mounting Type
Free Hanging (In-Line)
Note
Contacts Not Included
Number of Positions
3
Number of Rows
1
Rid
413149
Series
PicoBlade 51047

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

Molex 510470300 is documented for signal, wire-to-wire use within the PicoBlade Connector System. The manufacturer documentation lists mating use with PicoBlade Single Row Receptacle Housings 51021 and PicoBlade Male Crimp Terminals 50125 and 50133. Contacts are not included, so buyers and engineers should confirm the mating housing, terminals, crimp process, and applicable Molex documentation before design-in or production sourcing.
