Images are for reference only
1827897

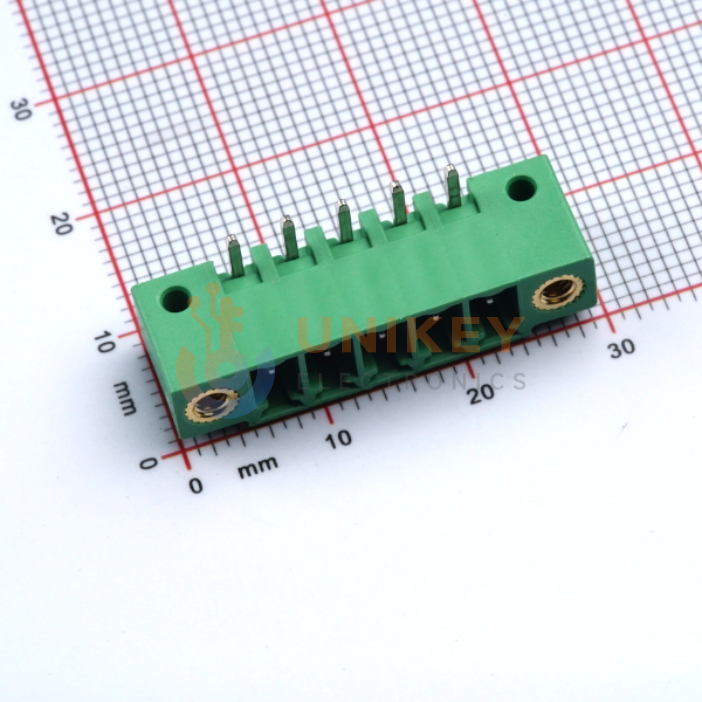

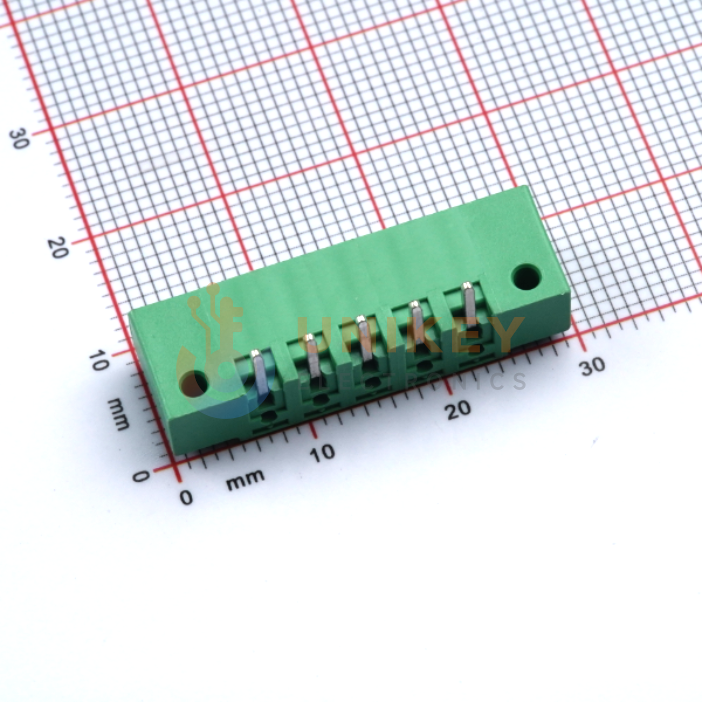

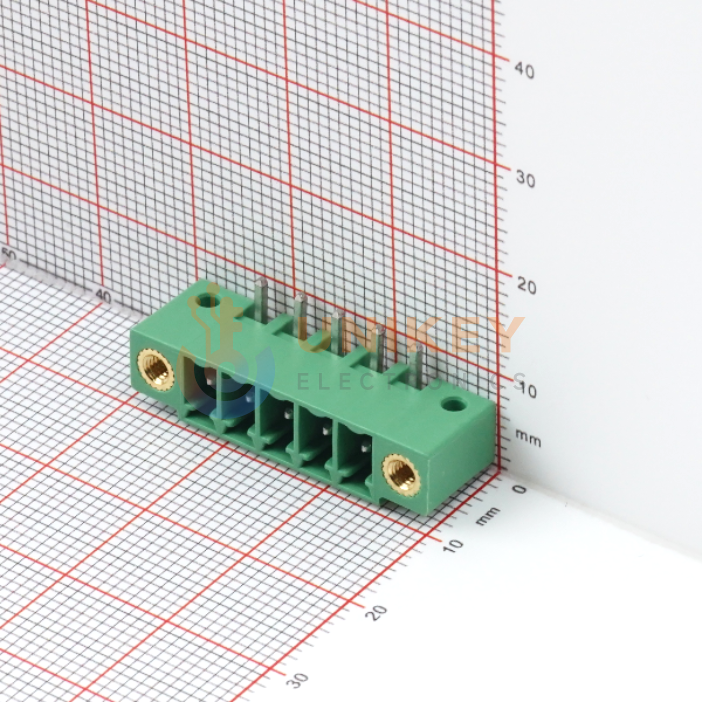

Phoenix Contact MC1,5/5-GF-3,81 PCB Socket, Plug, Pin Header, Shielded (4-Sided), 1 Channel, 5-Pin, Screw, Green, TH, 9.2mm × 29.44mm × 10.3mm
Other Names:1827897
Manufacturer:Phoenix Contact
Manufacturer Part:1827897
Datasheet:Phoenix Contact 1827897 Datasheet (PDF)
Email Document
In Stock
710 In stock, ready to ship
Quantity
1
Unit Price (USD)
$1.3598
Ext. Price (USD)
$1.35
Total price$1.35
MOQ1Mult1SPQ250DC2638+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$1.3598
$1.35
10
$1.1129
$11.12
30
$0.9831
$29.49
250
$0.8358
$208.95
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current-IEC | 8A |
| Voltage - UL | 300 V |
| Operating Temperature | - |
| Header Orientation | 90°, Right Angle |
| Number of Levels | 1 |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
| Current-UL | 8 A |
| Voltage - IEC | 250 V |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Tin |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Packaging | Bulk |
| Contact Tail Length | 0.134" (3.40mm) |
| Insulation Height | 0.285" (7.25mm) |
| Pitch | 0.150" (3.81mm) |
| Positions Per Level | 5 |
| Ingress Protection | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | Mating and Mounting Flange |
| Mounting Type | Through Hole |
| Number of Positions | 5 |
| Screw Size | - |
| Series | COMBICON MC |
| Torque-Screw | - |
Frequently Asked Questions (FAQs)
For PHOENIX CONTACT 1827897, use the manufacturer datasheet’s mechanical data rather than generic connector assumptions. The datasheet specifies wave soldering, linear pinning, a threaded flange, and 0.3 Nm tightening torque for the flange. PCB layout checks should use the listed 3.81 mm pitch, 3.4 mm solder pin length, 0.8 x 0.8 mm pin dimensions, and 1.2 mm hole diameter. Do not infer wiring steps not specified in the manufacturer documentation.
