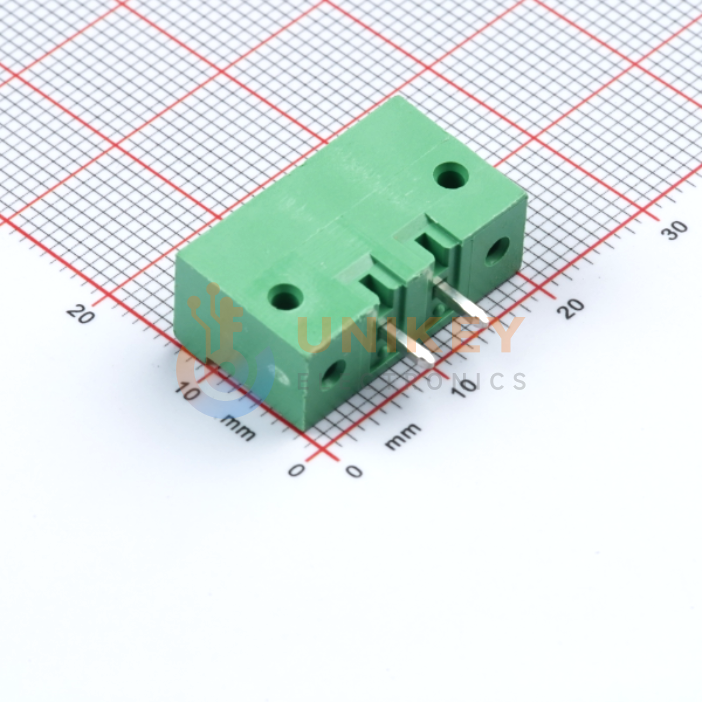

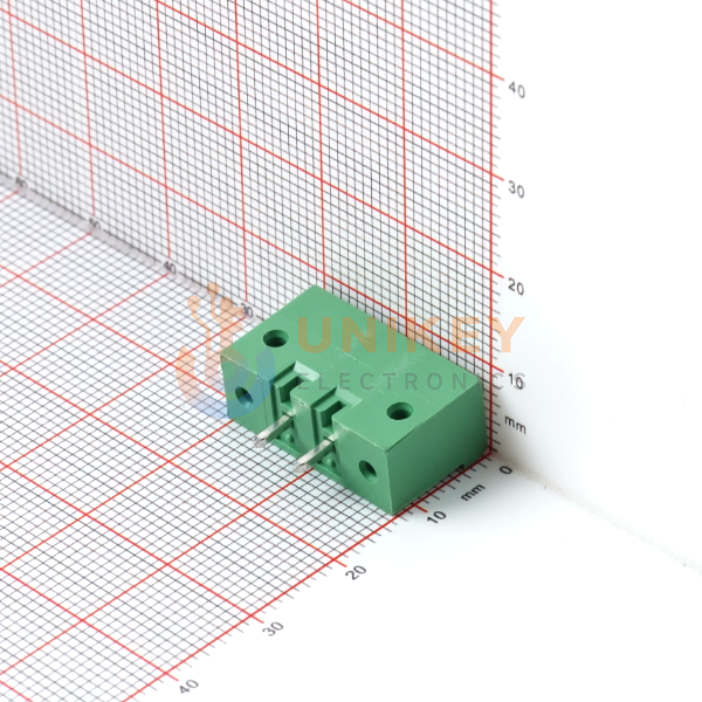

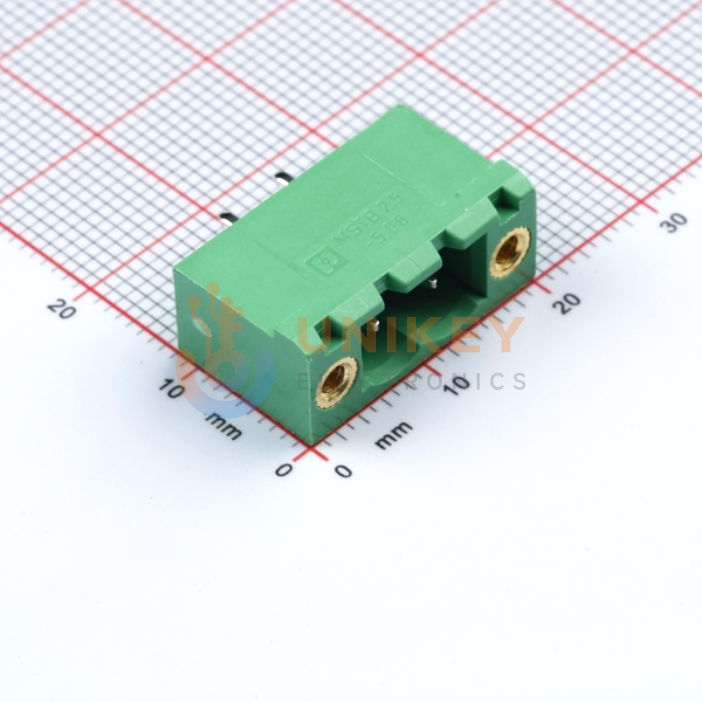

Phoenix Contact 1777073 image
Images are for reference only

1777073

Phoenix Contact MSTBV2,5/2-GF-5,08 PCB Socket, Connector, Pin, Shielded (4-Side), 2-Pin, Green, TH, 30.52mm × 20.32mm × 8.6mm

Other Names:1777073

Manufacturer:Phoenix Contact

Manufacturer Part:1777073

Email Document
ECAD Model:

Available Stock

Available to order:4
Estimated Ship Time:4-6 working days

Quantity

1

Unit Price (USD)

$0.6887

Ext. Price (USD)

$0.68

Total price$0.68
MOQ1Mult1SPQ1DC26+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.6887
$0.68
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
12A
Voltage - UL
300 V
Operating Temperature
-
Header Orientation
Vertical
Number of Levels
1
Plug Wire Entry
-
Termination Style
Solder
Wire Gauge or Range - AWG
-
Wire Gauge or Range - mm²
-
Wire Strip Length
-
Current-UL
12 A
Voltage - IEC
630 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
0.154" (3.90mm)
Insulation Height
0.472" (12.00mm)
Pitch
0.200" (5.08mm)
Positions Per Level
2
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
Mating and Mounting Flange
Mounting Type
Through Hole
Number of Positions
2
Screw Size
-
Series
COMBICON MSTBV
Torque-Screw
-
