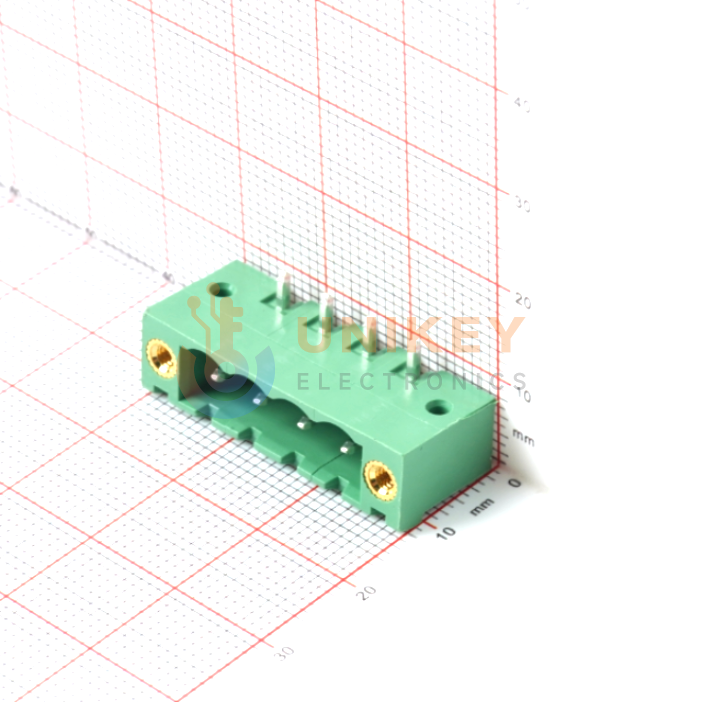

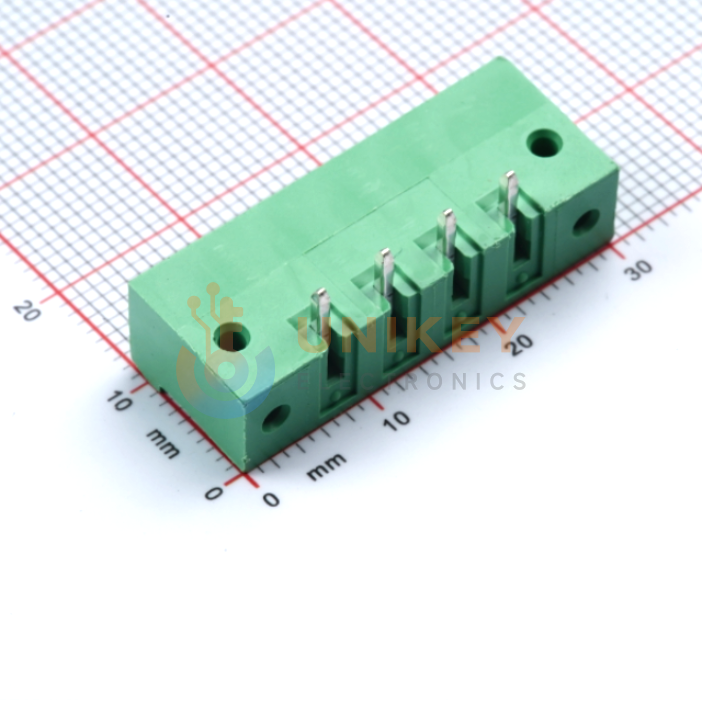

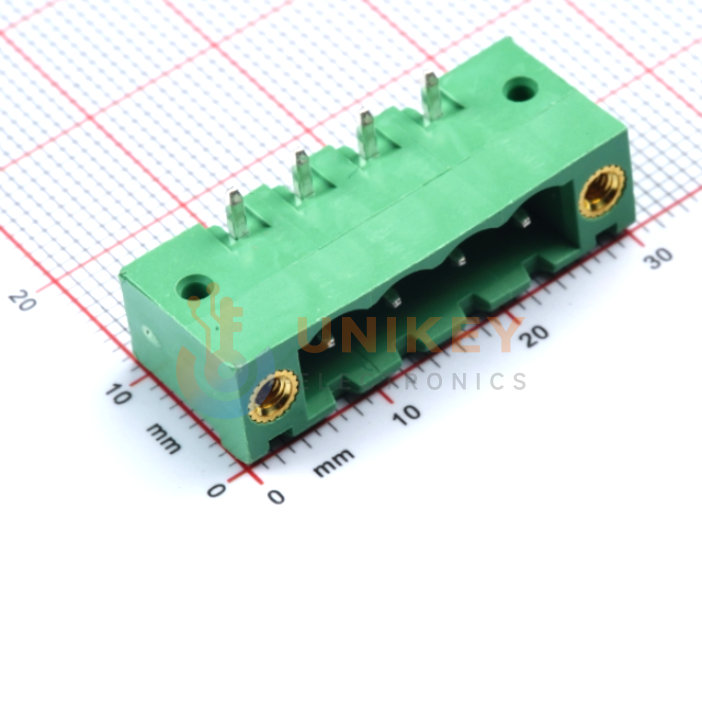

Phoenix Contact 1776524 image
Images are for reference only

1776524

Phoenix Contact MSTB2,5/4-GF-5,08 PCB Socket, Male Pin, Covered (4 sides), 4-Pin, Solder, Green, Fixed Mount, Threaded Mount 30.48mm × 30.48mm × 12mm

Other Names:1776524

Manufacturer:Phoenix Contact

Manufacturer Part:1776524

Email Document
ECAD Model:

In Stock

1,459 In stock, ready to ship

Quantity

1

Unit Price (USD)

$1.0116

Ext. Price (USD)

$1.01

Total price$1.01
MOQ1Mult1SPQ250DC2633+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$1.0116
$1.01
10
$0.8333
$8.33
50
$0.7083
$35.41
150
$0.663
$99.45
500
$0.6233
$311.65
1,000
$0.588
$588.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
12A
Voltage - UL
300 V
Operating Temperature
-
Header Orientation
90°, Right Angle
Number of Levels
1
Plug Wire Entry
-
Termination Style
Solder
Wire Gauge or Range - AWG
-
Wire Gauge or Range - mm²
-
Wire Strip Length
-
Current-UL
15 A
Voltage - IEC
400 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
0.138" (3.50mm)
Insulation Height
0.339" (8.61mm)
Pitch
0.200" (5.08mm)
Positions Per Level
4
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
Mating and Mounting Flange
Mounting Type
Through Hole
Number of Positions
4
Screw Size
-
Series
COMBICON MSTB
Torque-Screw
-

Certifications
