1776508

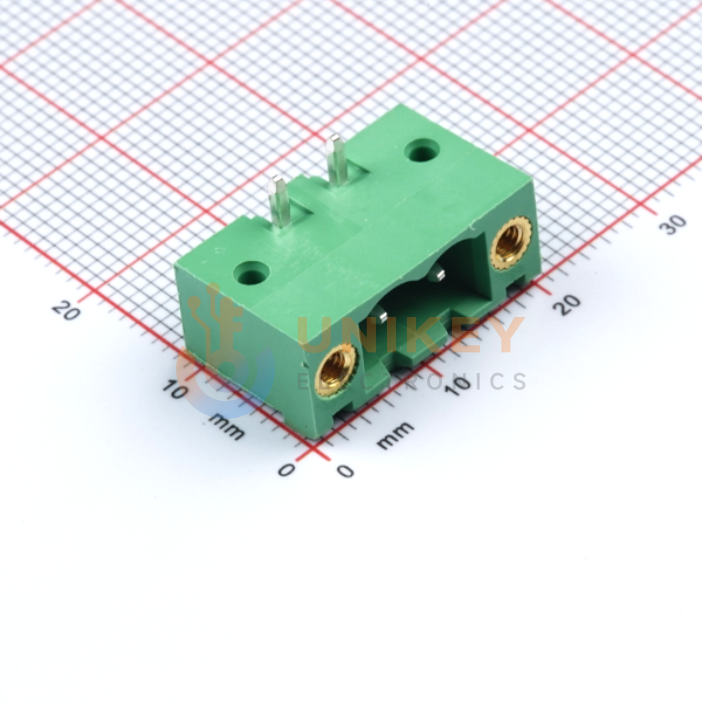

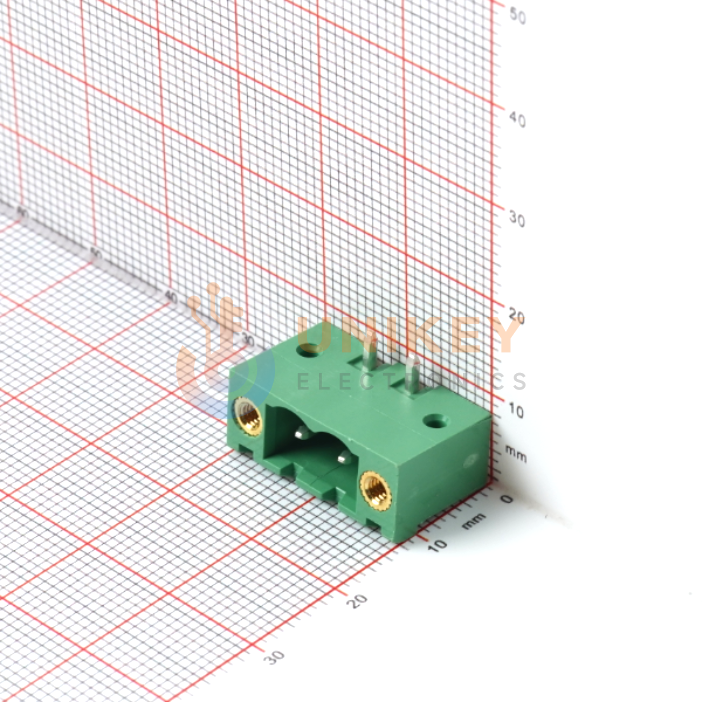

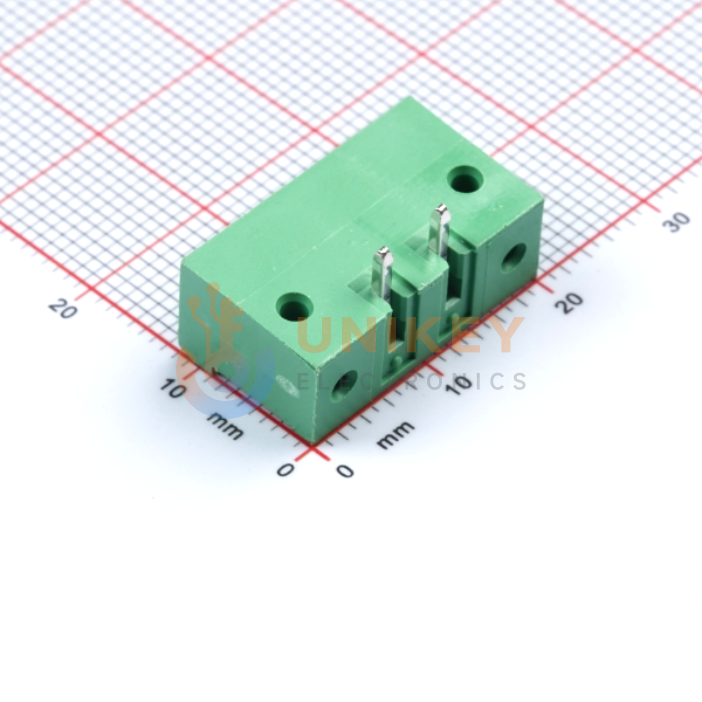

Phoenix Contact COMBICON MSTB Series PCB Socket 5.08mm Pitch 2P Pluggable Terminal Block 320V Solder
Other Names:1776508
Manufacturer:Phoenix Contact
Manufacturer Part:1776508
Datasheet:Phoenix Contact 1776508 Datasheet (PDF)
Email Document
In Stock
3,040 In stock, ready to ship
Quantity
1
Unit Price (USD)
$1.0306
Ext. Price (USD)
$1.03
Total price$1.03
MOQ1Mult1SPQ250DC2639+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$1.0306
$1.03
10
$0.8677
$8.67
30
$0.7803
$23.40
250
$0.6682
$167.05
500
$0.6245
$312.25
1,000
$0.6041
$604.10
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current-IEC | 12A |
| Voltage - UL | 300 V |
| Operating Temperature | - |
| Header Orientation | 90°, Right Angle |
| Number of Levels | 1 |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
| Current-UL | 15 A |
| Voltage - IEC | 400 V |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Tin |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Packaging | Bulk |
| Contact Tail Length | 0.138" (3.50mm) |
| Insulation Height | 0.339" (8.61mm) |
| Pitch | 0.200" (5.08mm) |
| Positions Per Level | 2 |
| Ingress Protection | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | Mating and Mounting Flange |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Rid | 349000 |
| Screw Size | - |
| Series | COMBICON MSTB |
| Torque-Screw | - |
Frequently Asked Questions (FAQs)
For an industrial equipment design review, PHOENIX CONTACT 1776508 should be treated as a solder-mounted PCB header, not as a complete plug assembly by itself. The manufacturer datasheet identifies it as a 2-position header with 5.08 mm pitch and provides drilling plan, solder pad geometry, and dimensional details. Use the datasheet ratings, including 12 A nominal current and listed voltage ratings, when checking board layout, mating components, and compliance requirements.
