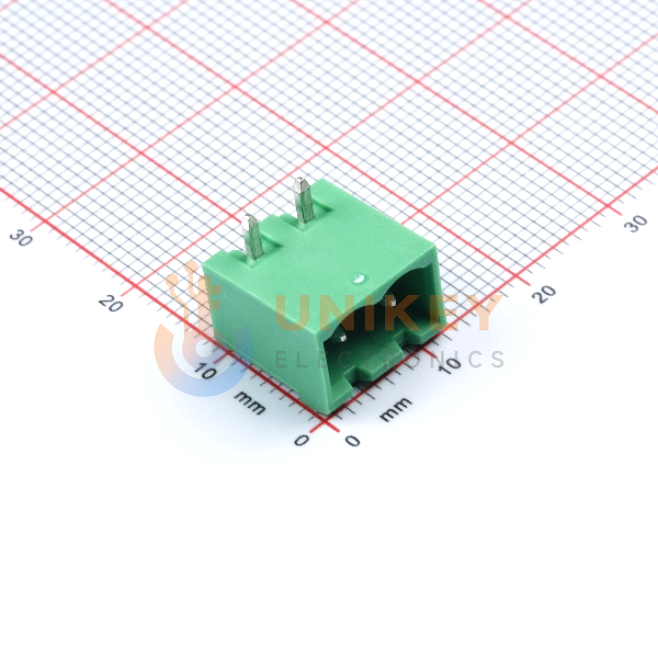

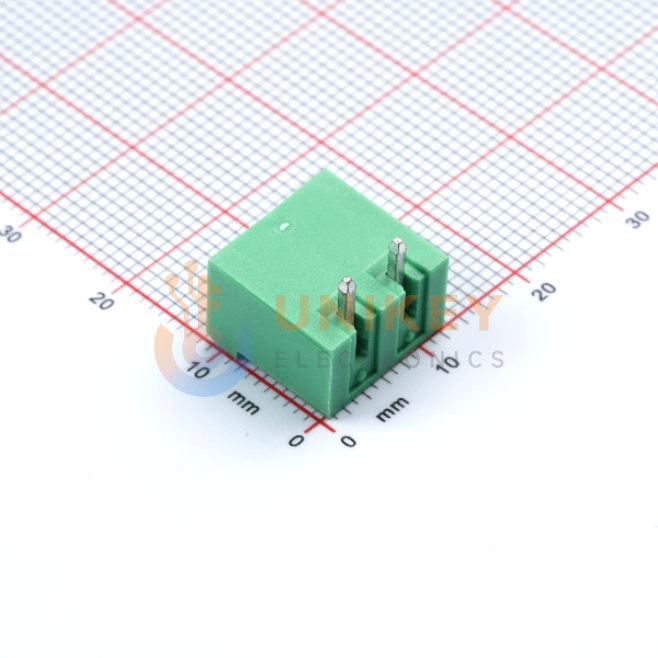

Phoenix Contact 1757242 image
Images are for reference only

1757242

Phoenix Contact MSTBA 2.5/2-G-5.08 PCB Socket, 5.08mm Pitch 2-Pin Pluggable Terminal Block, 400V, Solder

Other Names:1757242

Manufacturer:Phoenix Contact

Manufacturer Part:1757242

Email Document
ECAD Model:

In Stock

9,890 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.3173

Ext. Price (USD)

$1.58

Total price$1.58
MOQ5Mult1SPQ250DC2607+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.3173
$1.58
50
$0.2457
$12.28
250
$0.211
$52.75
500
$0.1736
$86.80
2,500
$0.1569
$392.25
5,000
$0.147
$735.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
12A
Voltage - UL
300 V
Operating Temperature
-40°C
Header Orientation
90°, Right Angle
Number of Levels
1
Plug Wire Entry
-
Termination Style
Solder
Wire Gauge or Range - AWG
-
Wire Gauge or Range - mm²
-
Wire Strip Length
-
Current-UL
15 A
Voltage - IEC
400 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
0.138" (3.50mm)
Insulation Height
0.339" (8.61mm)
Pitch
0.200" (5.08mm)
Positions Per Level
2
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
-
Mounting Type
Through Hole
Number of Positions
2
Rid
260474
Screw Size
-
Series
COMBICON MSTBA
Torque-Screw
-

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The manufacturer documentation for PHOENIX CONTACT 1757242 lists compatible Phoenix Contact plug components and accessories for the 2-position, 5.08 mm MSTBA header format. Examples include MSTB 2,5/ 2-ST-5,08 - 1757019, FKCN 2,5/ 2-ST-5,08 - 1754568, and other listed plug components. Compatibility should still be checked against the specific connector type, pitch, positions, current rating, voltage rating, and connection method.
