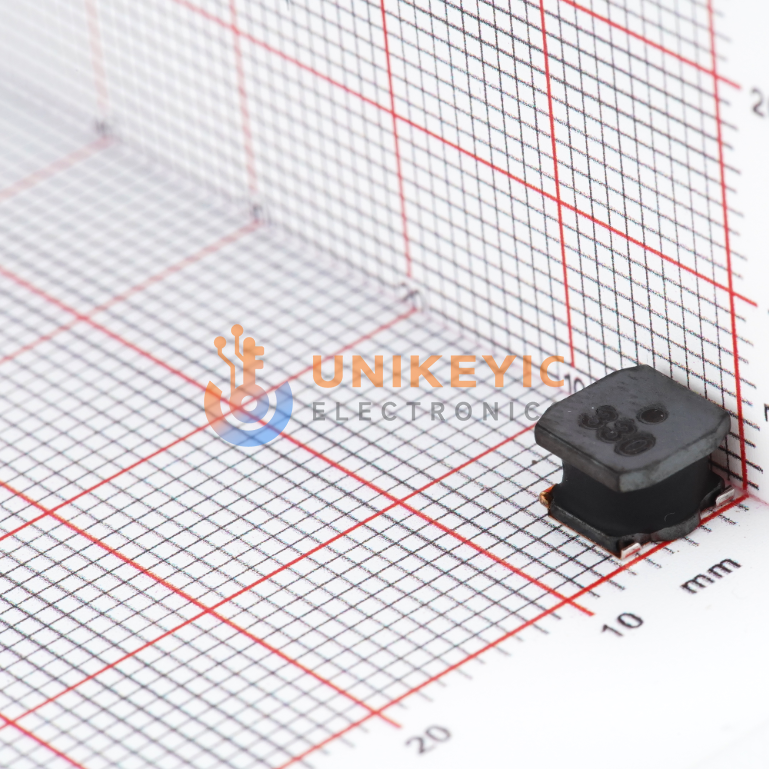

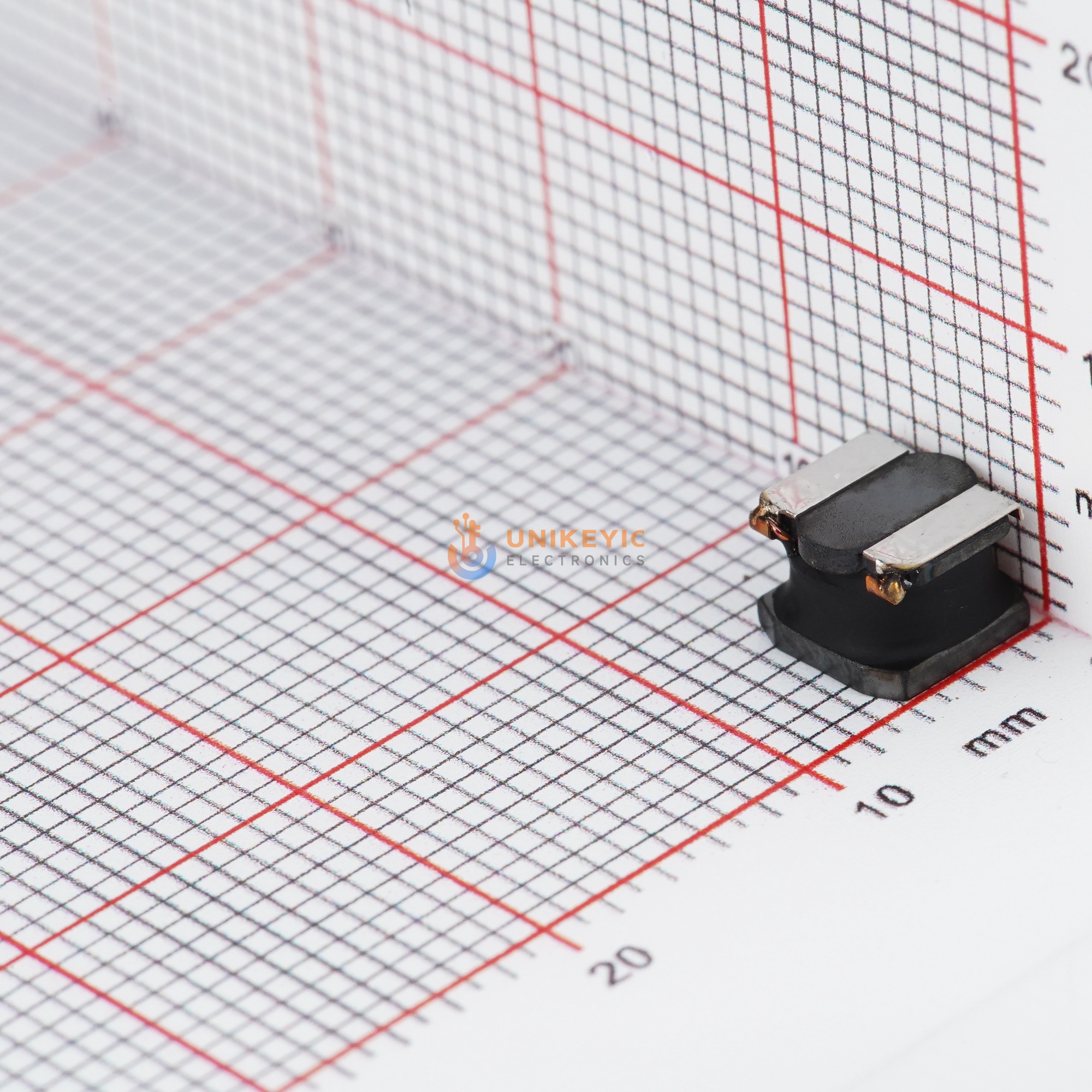

TDK VLS6045EX-330M image
Images are for reference only

VLS6045EX-330M

Inductor, 33μH, 175mΩ, 1.9A, 1.5A, 100kHz ±20%, 2424, SMD, 6mm × 6mm × 4.5mm

Other Names:VLS6045EX330M

more
VLS6045EX-330M

Manufacturer:TDK

Manufacturer Part:VLS6045EX-330M

Email Document
ECAD Model:

In Stock

821 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0712

Ext. Price (USD)

$0.07

Total price$0.07
MOQ1Mult1SPQ1,500DC2603+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0712
$0.07
1,500
$0.0643
$96.45
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
33 µH
Inductance Frequency-Test
100 kHz
Q @ Freq
-
Current - Saturation (Isat)
1.9A
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
1.5 A
DC Resistance (DCR)
175mOhm
Material - Core
Ferrite
Height-Seated (Max)
0.177" (4.50mm)
Package/Case
Nonstandard
Size / Dimension
0.236" L x 0.236" W (6.00mm x 6.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
5287392
Series
VLS-EX
Supplier Device Package
-
Tolerance
±20%
