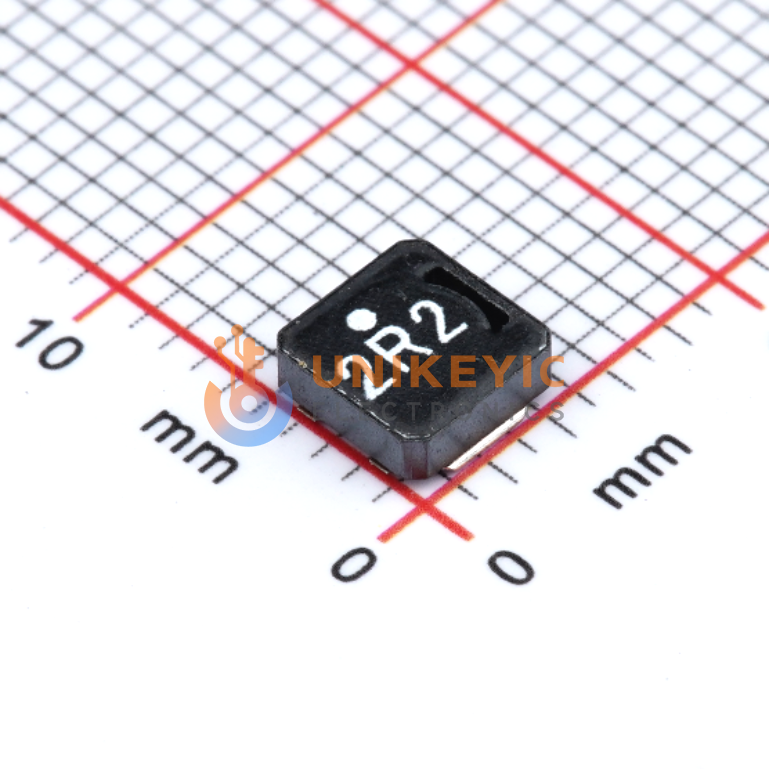

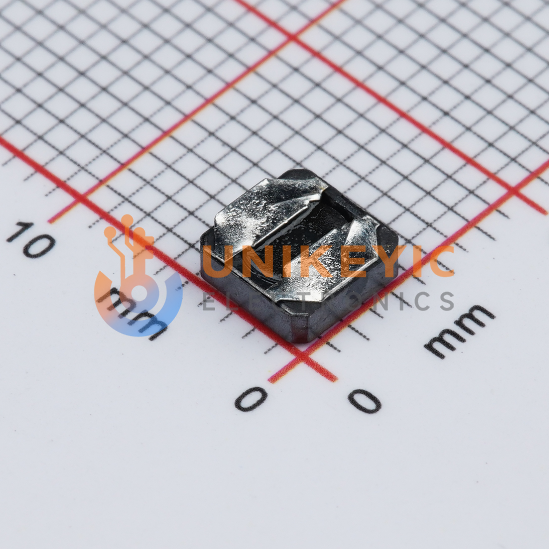

TDK VLCF5020T-2R2N2R6-3 image
Images are for reference only

VLCF5020T-2R2N2R6-3

100KHz ±30% 43mΩ 2.62A 2.62A 2.2μH 2020 standard mounting,SMD mount 5mm*5mm*2mm

Other Names:VLCF5020T-2R2N2R6-3

more
VLCF5020T-2R2N2R6-3
VLCF5020T2R2N2R63

Manufacturer:TDK

Manufacturer Part:VLCF5020T-2R2N2R6-3

Email Document
ECAD Model:

In Stock

15,397 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.1343

Ext. Price (USD)

$0.13

Total price$0.13
MOQ1Mult1SPQ500DC2629+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1343
$0.13
500
$0.1235
$61.75
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
2.2 µH
Inductance Frequency-Test
100 kHz
Q @ Freq
-
Current - Saturation (Isat)
2.62A
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
2.62 A
DC Resistance (DCR)
43mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.079" (2.00mm)
Package/Case
Nonstandard
Size / Dimension
0.197" L x 0.197" W (5.00mm x 5.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
2046807
Series
VLCF
Supplier Device Package
-
Tolerance
±30%
