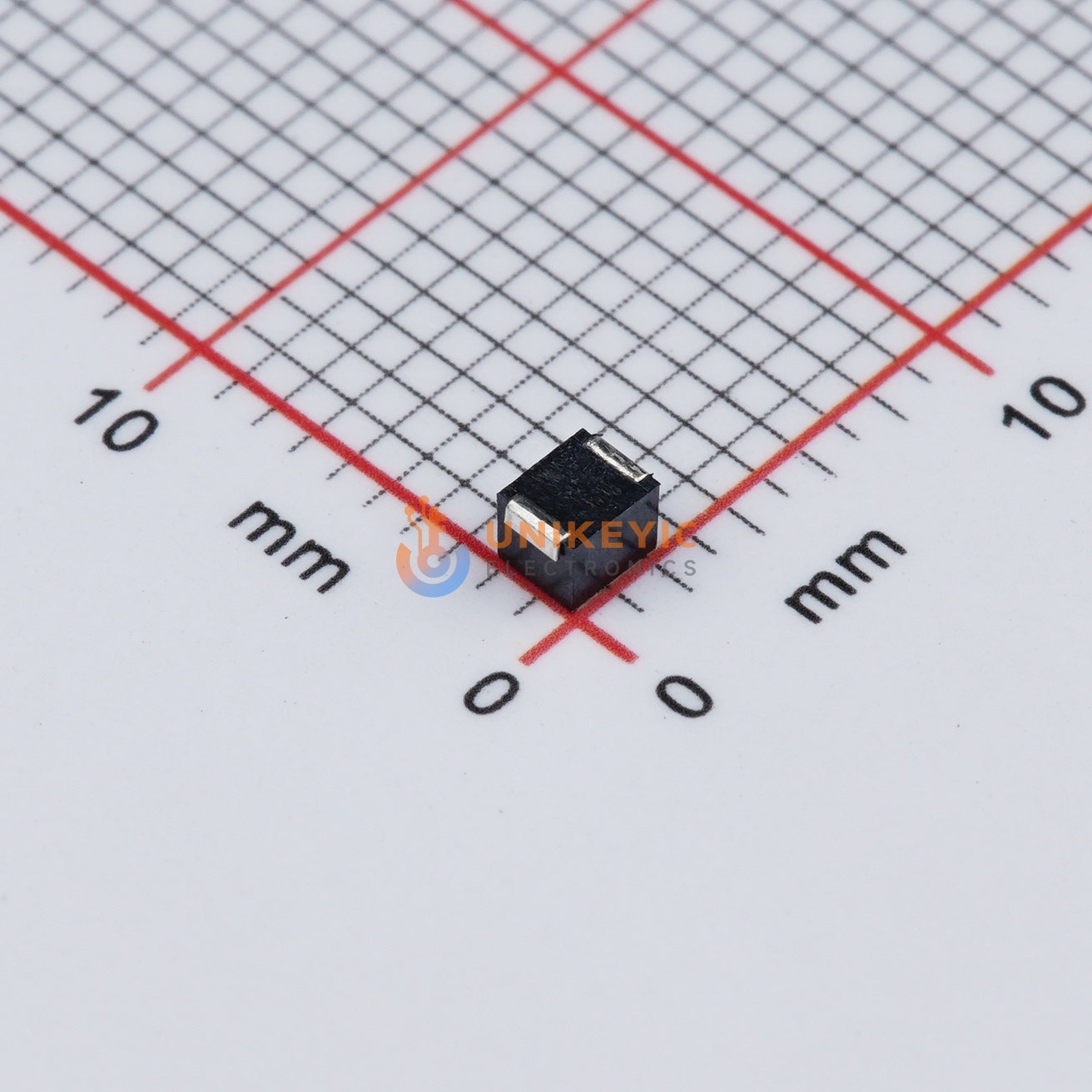

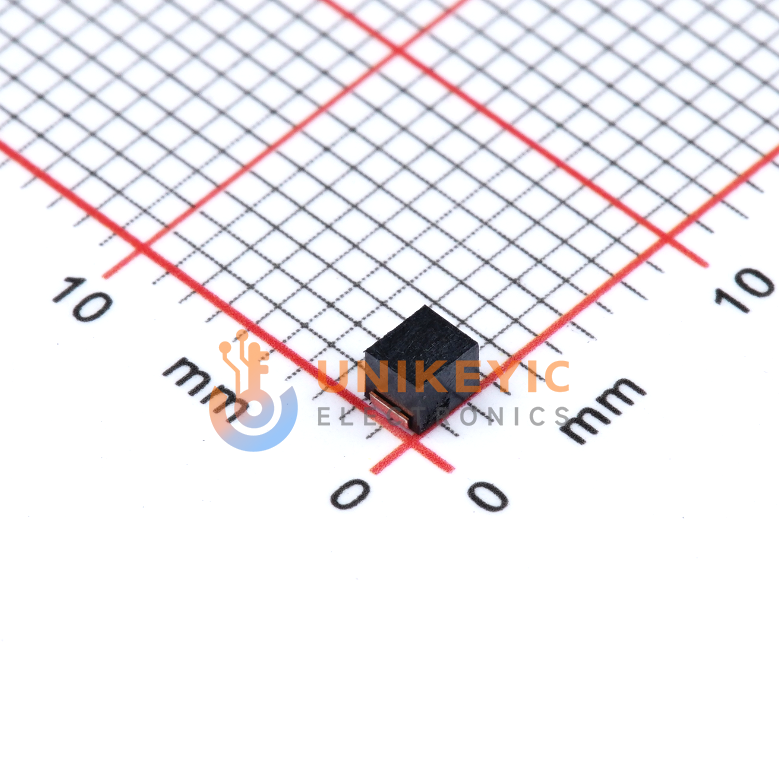

TDK NLV25T-101J-PF image
Images are for reference only

NLV25T-101J-PF

796KHz ±5% 12MHz 15@796kHz 21Ω 60mA 100μH 1008 SMD mount 2.5mm*2mm*1.9mm

Other Names:NLV25T101JPF

more
NLV25T-101J-PF

Manufacturer:TDK

Manufacturer Part:NLV25T-101J-PF

Email Document
ECAD Model:

In Stock

14,306 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0801

Ext. Price (USD)

$0.40

Total price$0.40
MOQ5Mult5SPQ2,000DC2523+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0801
$0.40
50
$0.0556
$2.78
150
$0.0416
$6.24
500
$0.0352
$17.60
2,000
$0.0315
$63.00
4,000
$0.0285
$114.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
12MHz
Inductance
100 µH
Inductance Frequency-Test
796 kHz
Q @ Freq
15 @ 796kHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
60 mA
DC Resistance (DCR)
21Ohm Max
Material - Core
Ferrite
Height-Seated (Max)
0.075" (1.90mm)
Package/Case
1008 (2520 Metric)
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
600332
Series
NLV-PF
Supplier Device Package
1008 (2520 Metric)
Tolerance
±5%
