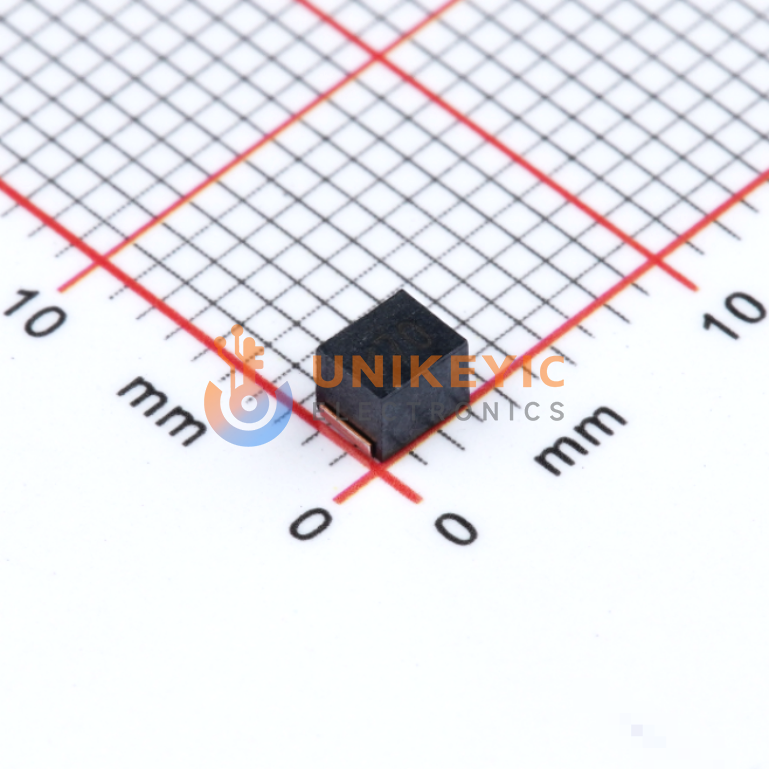

TDK NLCV32T-470K-PF image
Images are for reference only

NLCV32T-470K-PF

2.52MHz ±10% 14MHz 15@2.52MHz 2.132Ω 180mA 47μH 1210 SMD mount 3.2mm*2.5mm*2.4mm

Other Names:NLCV32T470KPF

more
NLCV32T-470K-PF
NLCV32T470K-PF

Manufacturer:TDK

Manufacturer Part:NLCV32T-470K-PF

Email Document
ECAD Model:

In Stock

77,452 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0375

Ext. Price (USD)

$0.37

Total price$0.37
MOQ10Mult10SPQ2,000DC2524+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0375
$0.37
100
$0.0336
$3.36
500
$0.0303
$15.15
2,000
$0.0271
$54.20
4,000
$0.0255
$102.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
14MHz
Inductance
47 µH
Inductance Frequency-Test
2.52 MHz
Q @ Freq
15 @ 2.52MHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
180 mA
DC Resistance (DCR)
2.132Ohm Max
Material - Core
Ferrite
Height-Seated (Max)
0.094" (2.40mm)
Package/Case
1210 (3225 Metric)
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
571850
Series
NLCV-PF
Supplier Device Package
1210
Tolerance
±10%
