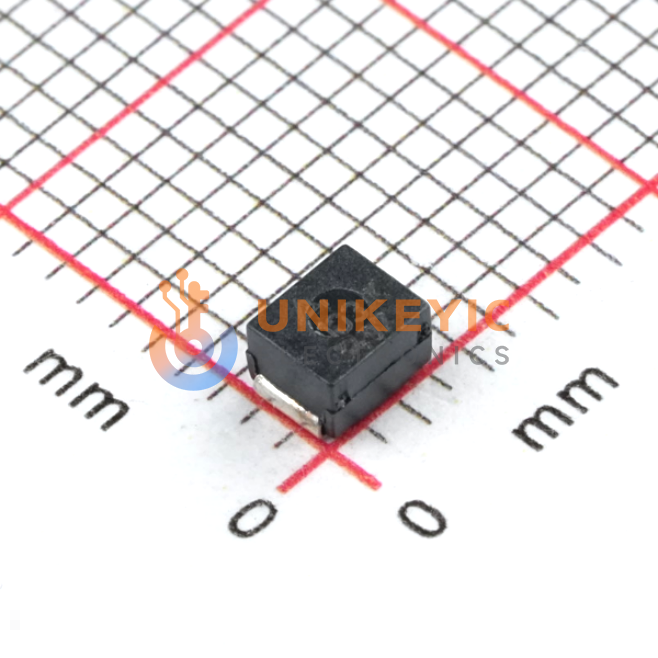

TDK B82422A1103K100 image
Images are for reference only

B82422A1103K100

1MHz ±10% 25MHz 27@2.52MHz 1.6Ω 180mA 10μH 1210 SMD mount 3.2mm*2.5mm*2.1mm

Other Names:B82422A1103K100

more
B82422-A1103-K100
B82422A1103K100

Manufacturer:TDK

Manufacturer Part:B82422A1103K100

Email Document
ECAD Model:

In Stock

23,373 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.2386

Ext. Price (USD)

$1.19

Total price$1.19
MOQ5Mult5SPQ2,000DC2507+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.2386
$1.19
50
$0.1885
$9.42
150
$0.1558
$23.37
500
$0.1389
$69.45
2,000
$0.1253
$250.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
25MHz
Inductance
10 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
27 @ 2.52MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
180 mA
DC Resistance (DCR)
1.6Ohm Max
Material - Core
Ferrite
Height-Seated (Max)
0.083" (2.10mm)
Package/Case
2-SMD, J-Lead
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
AEC-Q200
Rid
1244342
Series
SIMID
Supplier Device Package
1210 (3225 Metric)
Tolerance
±10%
