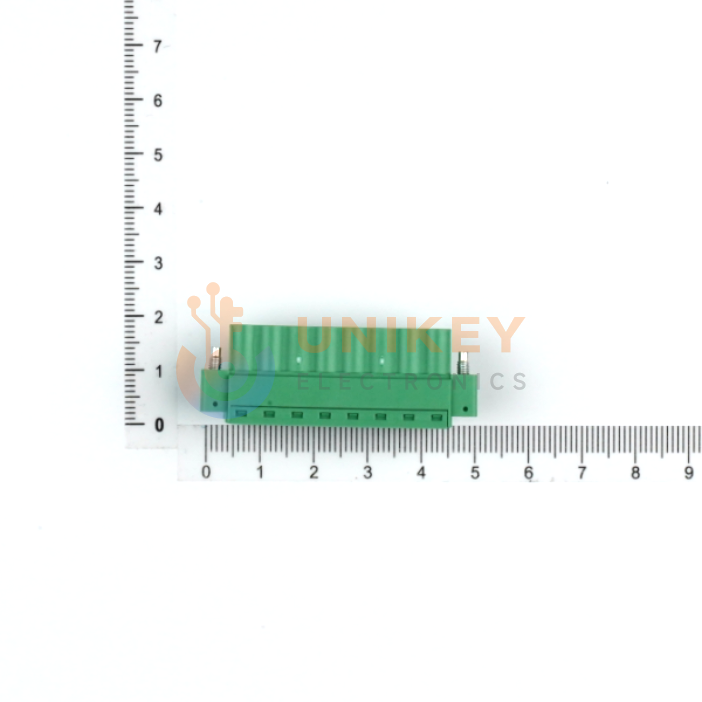

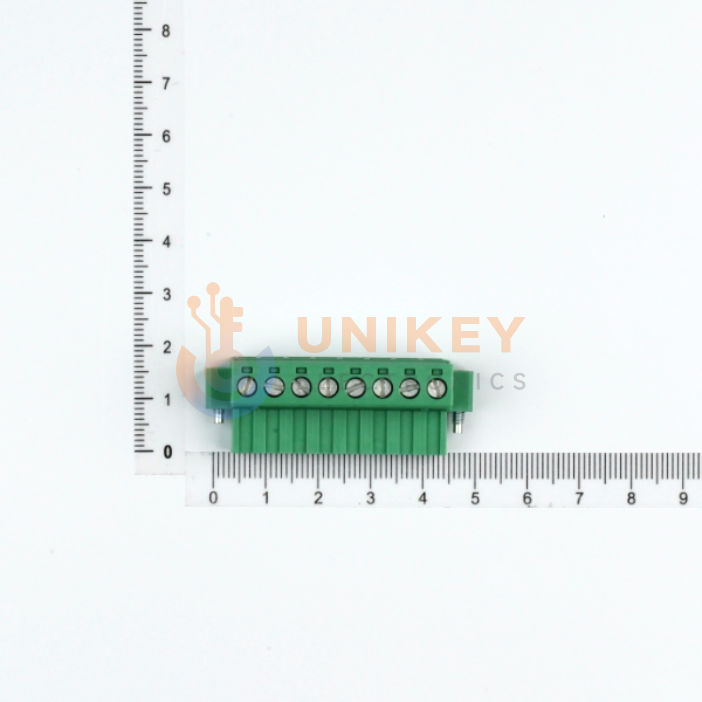

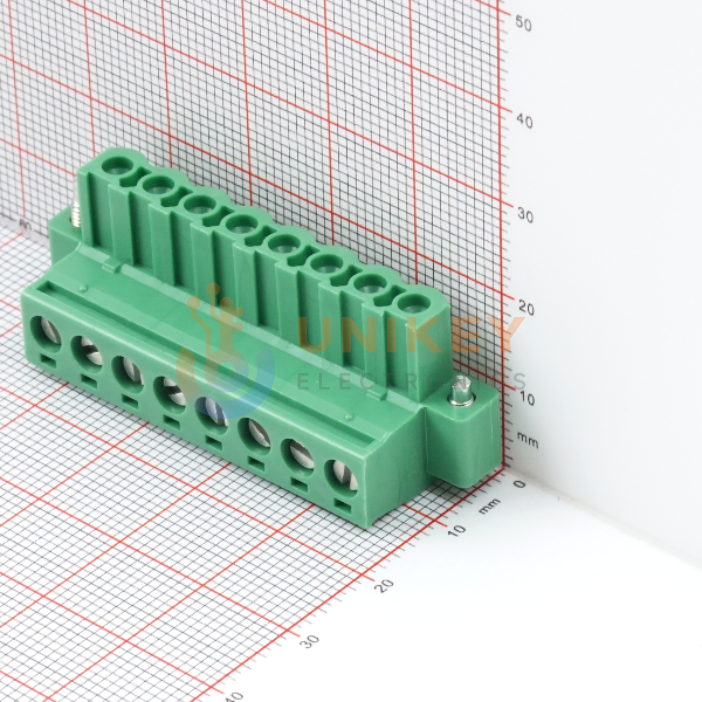

Phoenix Contact 1778043 image
Images are for reference only

1778043

Phoenix Contact MSTB2 5/8-STF-5,08 PCB Pluggable Connector, Plug, 5.08mm Pitch 8-Pin FMC1 Series

Other Names:1778043

Manufacturer:Phoenix Contact

Manufacturer Part:1778043

Email Document
ECAD Model:

In Stock

420 In stock, ready to ship

Quantity

1

Unit Price (USD)

$2.9201

Ext. Price (USD)

$2.92

Total price$2.92
MOQ1Mult1SPQ50DC2639+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$2.9201
$2.92
10
$2.4978
$24.97
30
$2.236
$67.08
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
12A
Voltage - UL
300 V
Operating Temperature
-
Header Orientation
-
Number of Levels
1
Plug Wire Entry
180°
Termination Style
Screw - Rising Cage Clamp
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm²
0.2-2.5mm²
Wire Strip Length
7mm
Current-UL
15 A
Voltage - IEC
630 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
-
Insulation Height
0.591" (15.00mm)
Pitch
0.200" (5.08mm)
Positions Per Level
8
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
Mating Flange
Mounting Type
Free Hanging (In-Line)
Number of Positions
8
Rid
349034
Screw Size
M3
Series
COMBICON MSTB
Torque-Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
