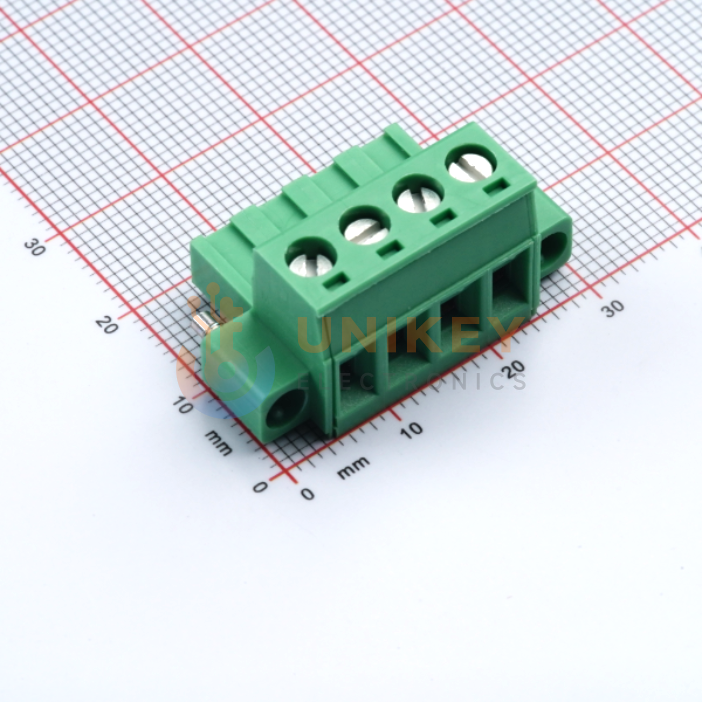

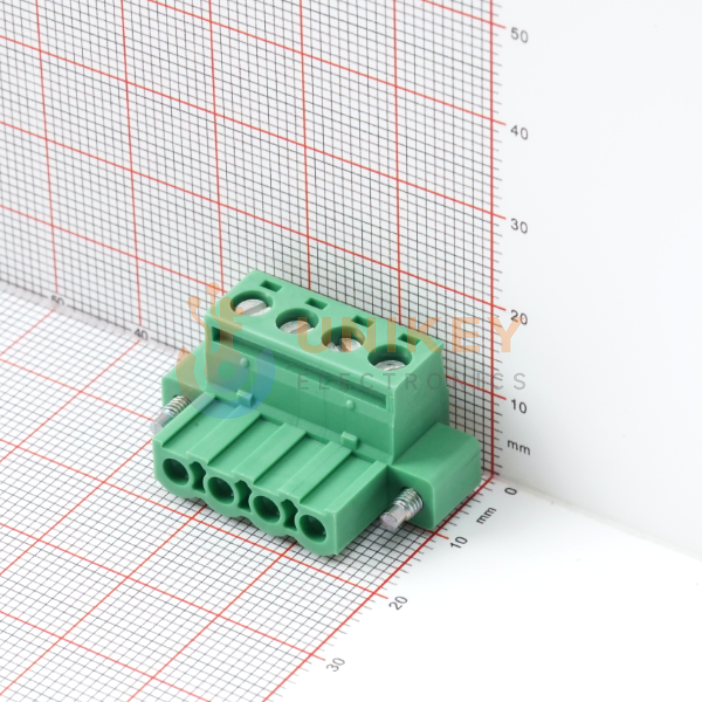

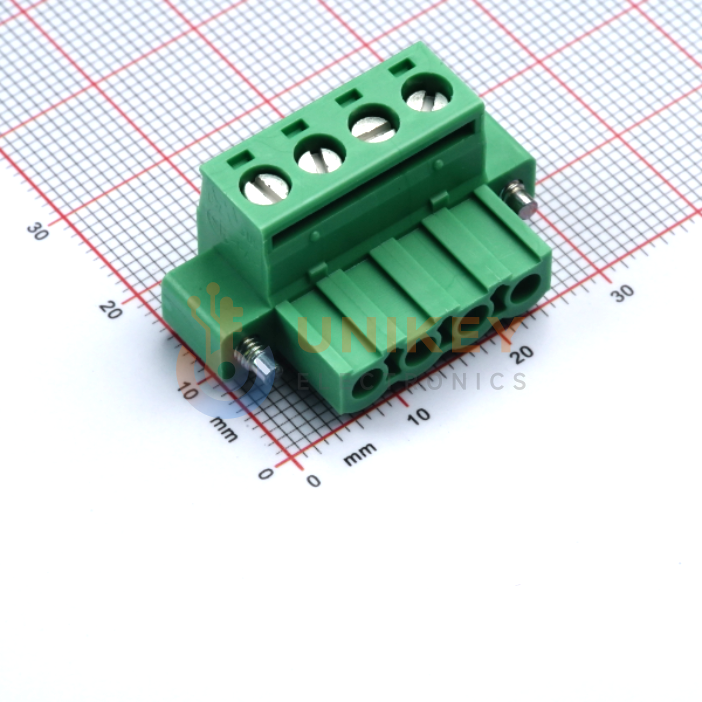

Phoenix Contact 1778001 image
Images are for reference only

1778001

Phoenix Contact MSTB 2.5/4-STF-5.08 PCB Plug-in Connector 5.08mm Pitch 4Pos Screw Terminal 320V Green

Other Names:1778001

Manufacturer:Phoenix Contact

Manufacturer Part:1778001

Email Document
ECAD Model:

In Stock

3,242 In stock, ready to ship

Quantity

1

Unit Price (USD)

$2.1677

Ext. Price (USD)

$2.16

Total price$2.16
MOQ1Mult1SPQ100DC2638+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$2.1677
$2.16
10
$1.8375
$18.37
30
$1.6308
$48.92
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
12A
Voltage - UL
300 V
Operating Temperature
-
Header Orientation
-
Number of Levels
1
Plug Wire Entry
180°
Termination Style
Screw - Rising Cage Clamp
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm²
0.2-2.5mm²
Wire Strip Length
7mm
Current-UL
15 A
Voltage - IEC
630 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
-
Insulation Height
0.591" (15.00mm)
Pitch
0.200" (5.08mm)
Positions Per Level
4
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
Mating Flange
Mounting Type
Free Hanging (In-Line)
Number of Positions
4
Screw Size
M3
Series
COMBICON MSTB
Torque-Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
