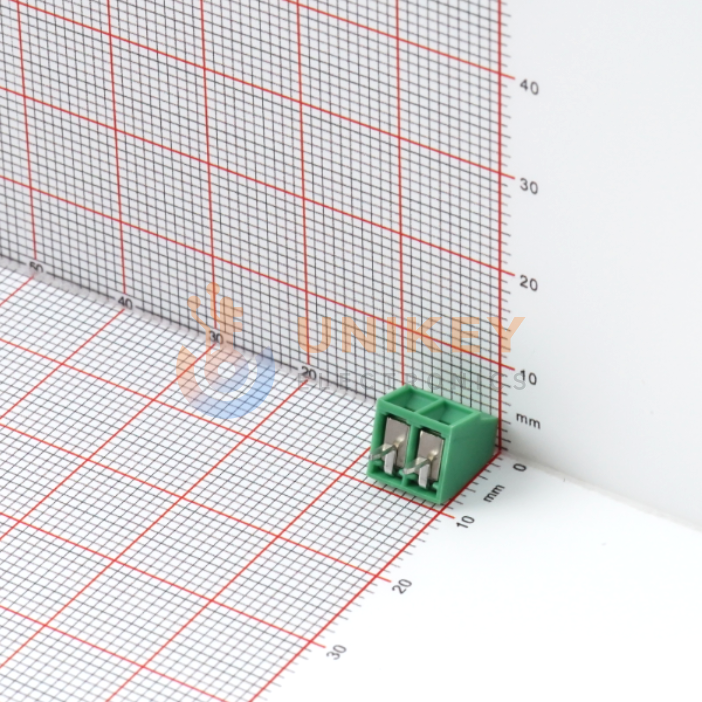

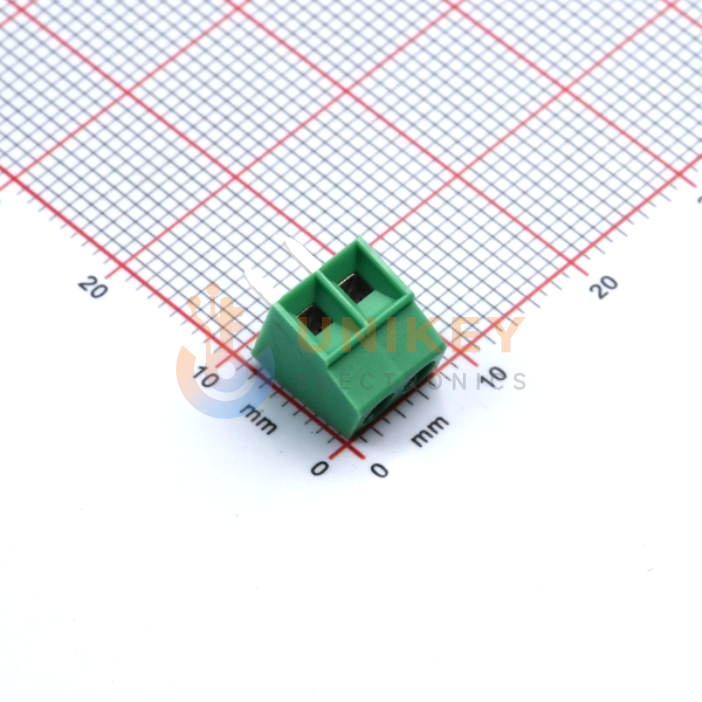

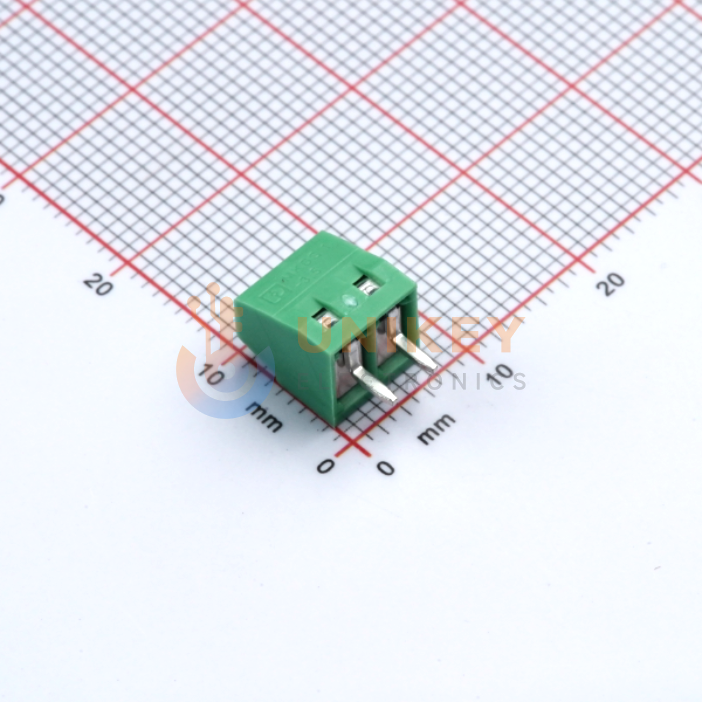

Phoenix Contact 1751248 image
Images are for reference only

1751248

Phoenix Contact MKDS 1/2-3.5 PCB Terminal Block, 2 Pos, 3.5mm Pitch TH Screw Green

Other Names:1751248

Manufacturer:Phoenix Contact

Manufacturer Part:1751248

Email Document
ECAD Model:

In Stock

1,280 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.8495

Ext. Price (USD)

$0.84

Total price$0.84
MOQ1Mult1SPQ360DC2610+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.8495
$0.84
10
$0.6874
$6.87
30
$0.6056
$18.16
100
$0.5256
$52.56
360
$0.4222
$151.99
1,080
$0.3974
$429.19
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current
10 A
Voltage
300 V
Operating Temperature
-
Mating Orientation
Horizontal with Board
Number of Levels
1
Wire Gauge
16-30 AWG
Wire Termination
Screw - Rising Cage Clamp
Clamp Material-Plating
-
Color
Green
Contact Material-Plating
-
Housing Material
Polyamide (PA), Nylon
Packaging
Bulk
Screw Material - Plating
-
Pitch
0.138" (3.50mm)
Positions Per Level
2
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
-
Mounting Type
Through Hole
Screw Thread
M2
Series
COMBICON MKDS
Torque-Screw
0.22-0.25 Nm (1.9-2.2 Lb-In)

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

In an industrial design or sourcing review, PHOENIX CONTACT 1751248 should be treated as a board-mounted wire-to-PCB connector candidate where the design requires a 2-position, 3.5 mm pitch screw connection. The manufacturer datasheet specifies wave-solder mounting, 0° conductor-to-PCB orientation, drill and dimensional information, and defined torque and stripping requirements. Engineers should verify the PCB footprint, approval ratings, conductor range, and application voltage/current limits against the manufacturer documentation before release.
