1727023

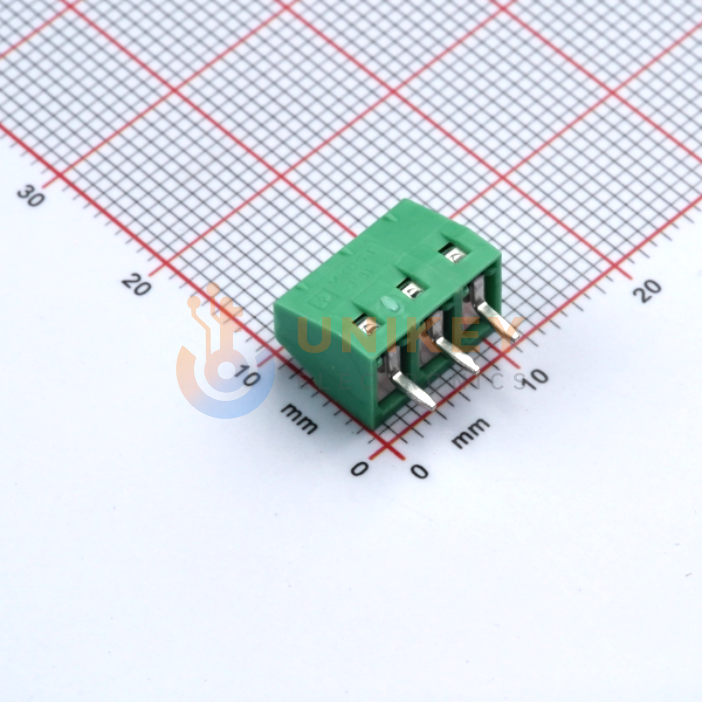

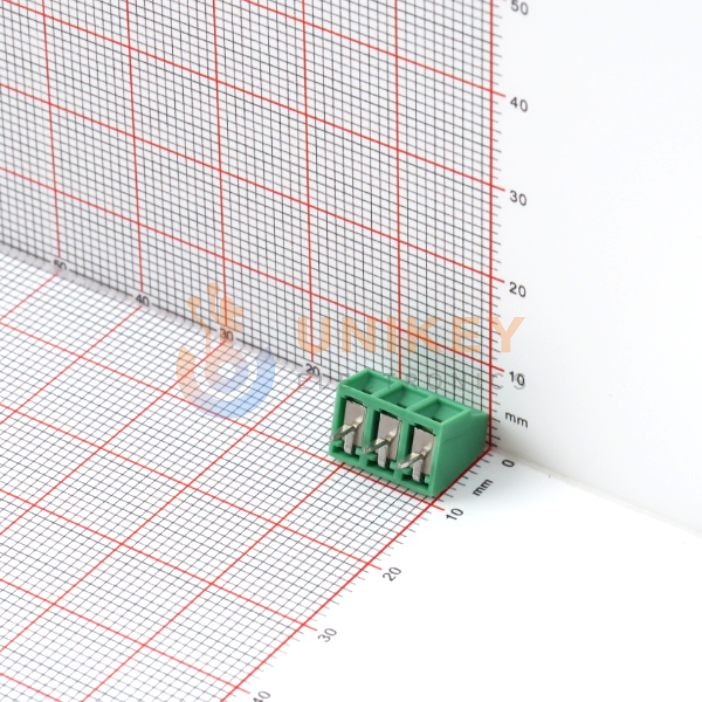

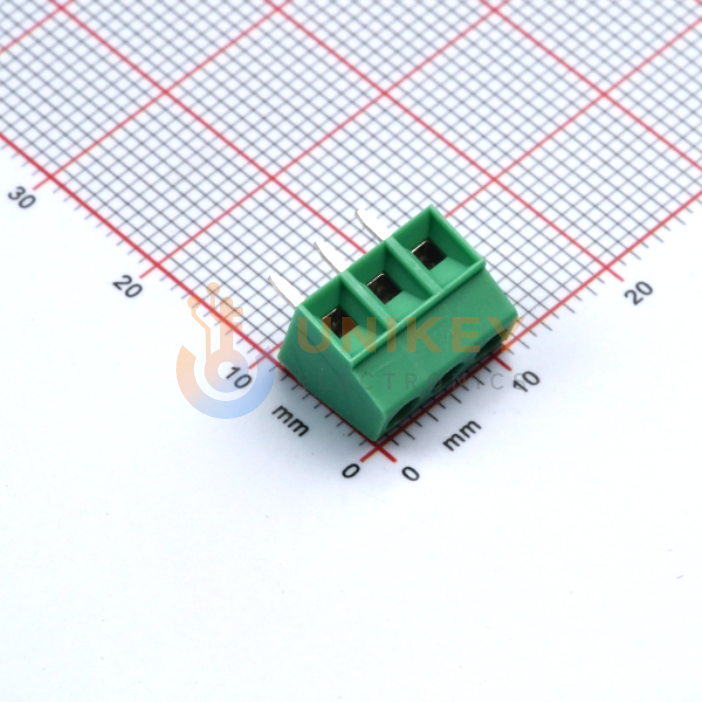

Phoenix Contact MKDS 1/3-3.81 Series PCB Terminal Block, 3-Way 3.81mm Pitch TH Solder Green
Other Names:1727023
Manufacturer:Phoenix Contact
Manufacturer Part:1727023
Datasheet:Phoenix Contact 1727023 Datasheet (PDF)
Email Document
In Stock
1,602 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.7575
Ext. Price (USD)
$0.75
Total price$0.75
MOQ1Mult1SPQ240DC2618+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.7575
$0.75
240
$0.7018
$168.43
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current | 10 A |
| Voltage | 300 V |
| Operating Temperature | - |
| Mating Orientation | Horizontal with Board |
| Number of Levels | 1 |
| Wire Gauge | 16-30 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
| Clamp Material-Plating | - |
| Color | Green |
| Contact Material-Plating | - |
| Housing Material | Polyamide (PA), Nylon |
| Packaging | Bulk |
| Screw Material - Plating | - |
| Pitch | 0.150" (3.81mm) |
| Positions Per Level | 3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | - |
| Mounting Type | Through Hole |
| Screw Thread | M2 |
| Series | COMBICON MKDS |
| Torque-Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
Frequently Asked Questions (FAQs)
For the PHOENIX CONTACT 1727023, review the manufacturer datasheet values before PCB layout and assembly: wave-solder mounting, linear pinning, 1.1 mm PCB hole diameter, 3.5 mm solder pin length, 5 mm stripping length, and 0.22 Nm ... 0.25 Nm tightening torque. The datasheet also notes that safe conductor connection requires adhering to the defined torque and supporting two- or three-position terminal blocks during conductor connection, rather than relying on the individual solder pins to absorb force.
