1714984

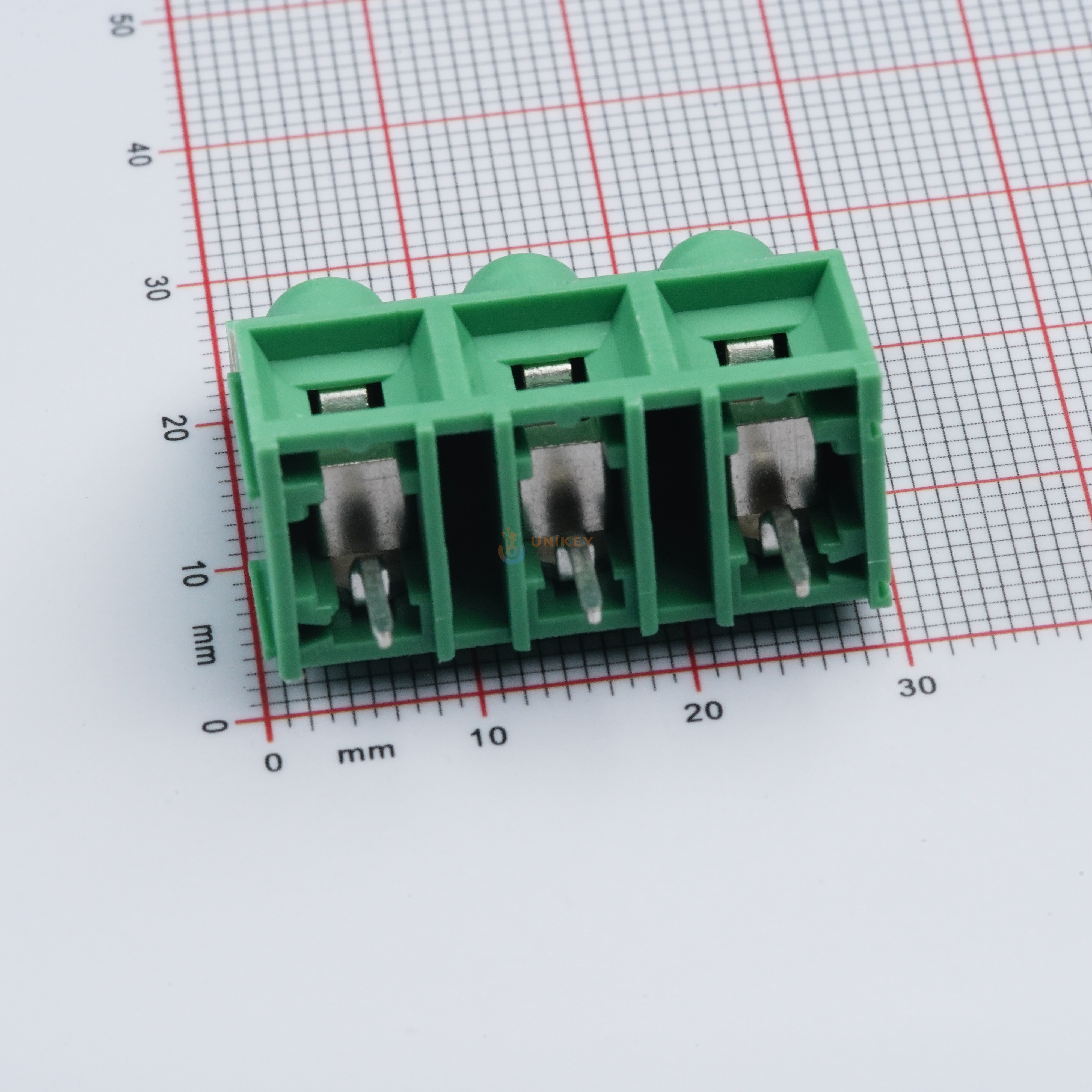

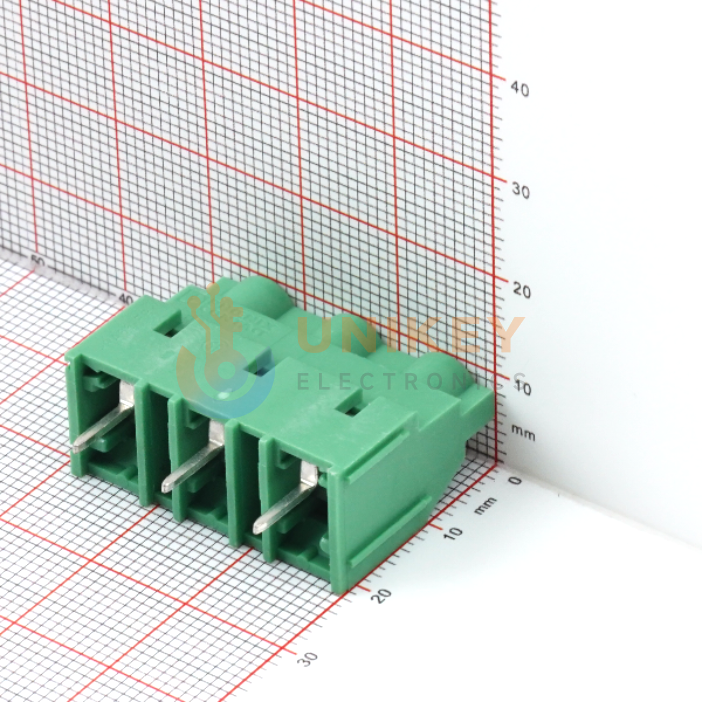

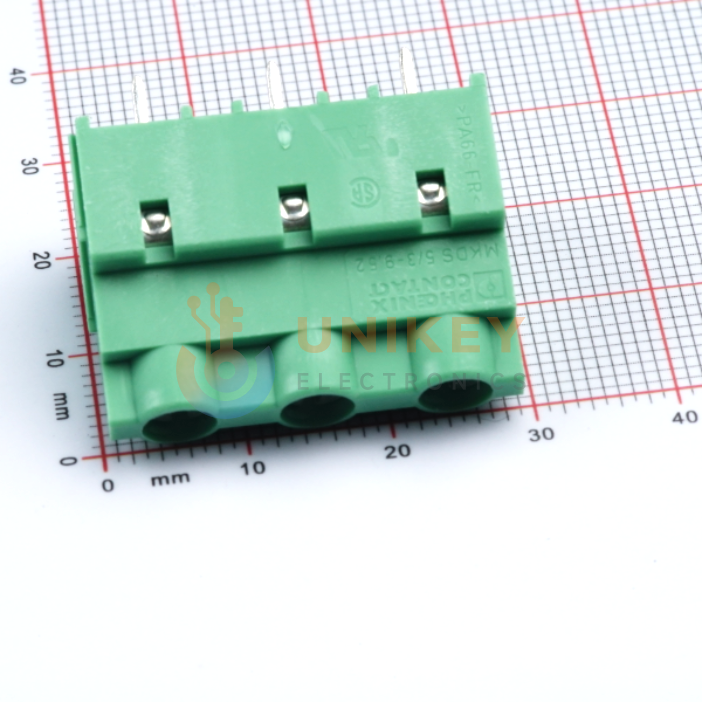

Phoenix Contact MKDS 5/3-9.5, PCB Terminal Block, 3 Pos, 9.52mm Pitch, TH, Screw, Green
Other Names:1714984
Manufacturer:Phoenix Contact
Manufacturer Part:1714984
Datasheet:Phoenix Contact 1714984 Datasheet (PDF)
Email Document
In Stock
564 In stock, ready to ship
Quantity
1
Unit Price (USD)
$1.8546
Ext. Price (USD)
$1.85
Total price$1.85
MOQ1Mult1SPQ50DC2515+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$1.8546
$1.85
10
$1.5813
$15.81
30
$1.4117
$42.35
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current | 30 A |
| Voltage | 600 V |
| Operating Temperature | - |
| Mating Orientation | Horizontal with Board |
| Number of Levels | 1 |
| Wire Gauge | 10-30 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
| Clamp Material-Plating | - |
| Color | Green |
| Contact Material-Plating | - |
| Housing Material | Polyamide (PA), Nylon |
| Packaging | Bulk |
| Screw Material - Plating | - |
| Pitch | 0.375" (9.53mm) |
| Positions Per Level | 3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | Interlocking (Side) |
| Mounting Type | Through Hole |
| Screw Thread | M3 |
| Series | COMBICON MKDS |
| Torque-Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
Frequently Asked Questions (FAQs)
For PHOENIX CONTACT 1714984, the manufacturer documentation lists approvals including DNV GL, CSA, RS, SEV, EAC, cULus Recognized, and IECEE CB Scheme. It also lists EN-VDE and CSA under standards and regulations, and specifies a UL 94 V0 flammability rating for the PA housing. The product specifications identify the part as RoHS Compliant, so buyers should match the required approval rating to their end application.
