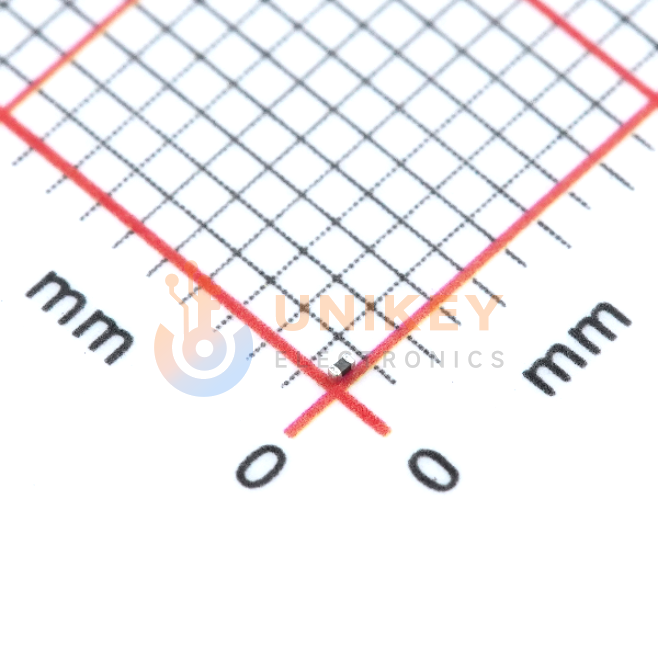

Murata NCP03XH103F05RL image
Images are for reference only

NCP03XH103F05RL

10kΩ ±1% 100mW ±1% 3434K 3380K 3455K Chip Resistor, SMD, 0201, 600μm × 300μm × 300μm

Other Names:NCP03XH103F05RL

Manufacturer:Murata

Manufacturer Part:NCP03XH103F05RL

Email Document
ECAD Model:

In Stock

92,787 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0124

Ext. Price (USD)

$0.62

Total price$0.62
MOQ50Mult50SPQ15,000DC2619+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0124
$0.62
500
$0.0098
$4.90
1,500
$0.0083
$12.45
15,000
$0.0075
$112.50
30,000
$0.0068
$204.00
45,000
$0.0064
$288.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
B Value Tolerance
±1%
Power - Max
100 mW
Operating Temperature
-40°C ~ 125°C
Length - Lead Wire
-
Package/Case
0201 (0603 Metric)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
B0/50
-
B25 / 100
3455K
B25/50
3380K
B25/75
-
B25/85
3434K
Base Product Number
NCP03X
Resistance in Ohms @ 25°C
10k
Resistance Tolerance
±1%
Rid
5451936
Series
NCP03

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

In circuits, the Murata Manufacturing NCP03XH103F05RL is used as a chip NTC thermistor where resistance change with temperature is part of the sensing or compensation function. The product documentation lists chip NTC use cases such as LCD contrast control, power amplifier temperature compensation, and battery pack temperature detection. Designers should verify the 0201 mounting footprint, 10k at 25°C value, B constants, power rating, and -40°C ~ 125°C operating range against the circuit requirements.
