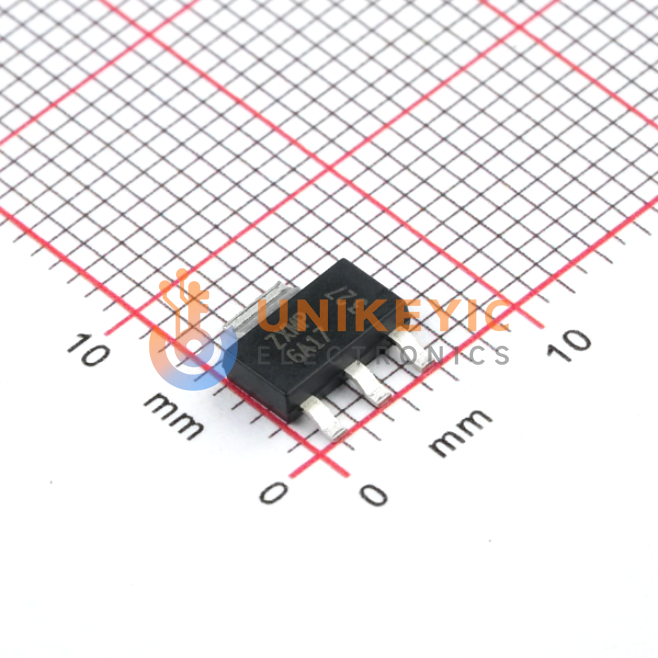

DIODES ZXMP6A17GTA image
Images are for reference only

ZXMP6A17GTA

DiodesZetex P-Ch MOSFET, Vds=60 V, 4.3 A, SOT-223, SMD, 3-Pin

Other Names:ZXMP6A17G

more
ZXMP6A17GTC
ZXMP6A17GTA

Manufacturer:DIODES

Manufacturer Part:ZXMP6A17GTA

Email Document
ECAD Model:

In Stock

16 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.3014

Ext. Price (USD)

$1.50

Total price$1.50
MOQ5Mult1SPQ1,000DC2425+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.3014
$1.50
50
$0.2341
$11.70
150
$0.2054
$30.81
1,000
$0.1697
$169.70
2,000
$0.1538
$307.60
5,000
$0.1443
$721.50
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Compliant
Package / Case (Metric)
SOT-223-3
Mounting Type
SMD mount
Application Level
Automotive
Product Status
On sale
SPM
Tape and reel packaging
Operating Temperature (Min)
-55℃(TJ)
Operating Temperature (Max)
150℃(TJ)
Length/Width/Height
6.5mm*3.5mm*1.65mm
Max. Input Capacitance Ciss (various Vds)
637pF@30V
Configuration
Independent Dualdrain
Continuous Drain Current (Id)
3A
On-State Drain-Source Resistance (Rds(on))
125mΩ@ 2.2A, 10V
Drain-Source Breakdown Voltage (Vds)
60V
FET Type
1individualPChannel
Gate Charge
17.7nC@ 10 V
Gate-Source Threshold Voltage (Vgs(th))
1V@ 250µA
Gate Source Voltage
20V
Max Power Dissipation
2W(Ta)
Number of Channels
1
