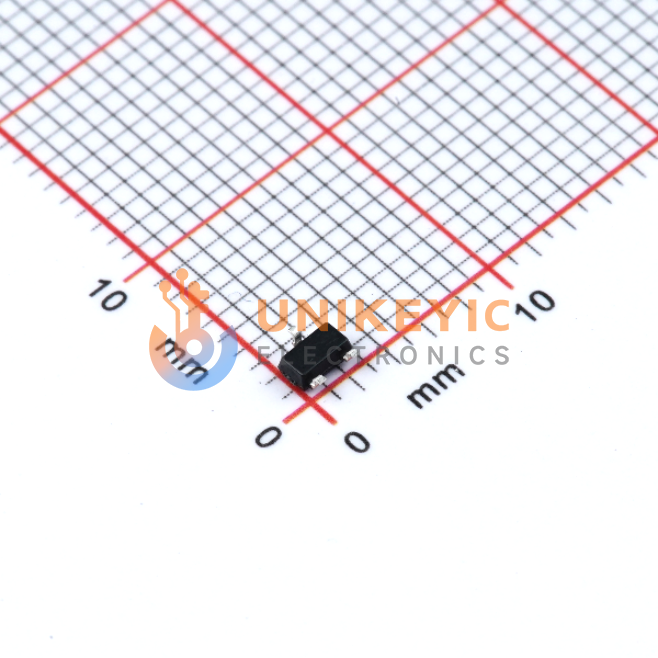

Will Semiconductor WPM3401-3/TR image
Images are for reference only

WPM3401-3/TR

P-Ch MOSFET 30V 4.6A 53mΩ@10V 1.25nF@15V 27nC@10V 12V 1.5V 1.3W SOT-23-3L SMD

Other Names:WPM3401-3/TR

Manufacturer:Will Semiconductor

Manufacturer Part:WPM3401-3/TR

Email Document
ECAD Model:

In Stock

3,684 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0873

Ext. Price (USD)

$0.43

Total price$0.43
MOQ5Mult1SPQ3,000DC2605+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0873
$0.43
50
$0.0683
$3.41
150
$0.0589
$8.83
500
$0.0519
$25.95
3,000
$0.0463
$138.90
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Compliant
Package / Case (Metric)
SOT-23-3L
Mounting Type
SMD mount
Application Level
Industrial
Product Status
SPM
Tape and reel packaging
Operating Temperature
-55℃~150℃
Length/Width/Height
Max. Input Capacitance Ciss (various Vds)
1.25nF@ 15V
Configuration
-
Continuous Drain Current (Id)
4.6A
On-State Drain-Source Resistance (Rds(on))
53mΩ@ 10V
Drain-Source Breakdown Voltage (Vds)
30V
FET Type
1individualPChannel
Gate Charge
27nC@ 10V
Gate-Source Threshold Voltage (Vgs(th))
1.5V
Gate Source Voltage
12V
Max Power Dissipation
1.3W
Number of Channels
1
