TPH7R506NH,L1Q

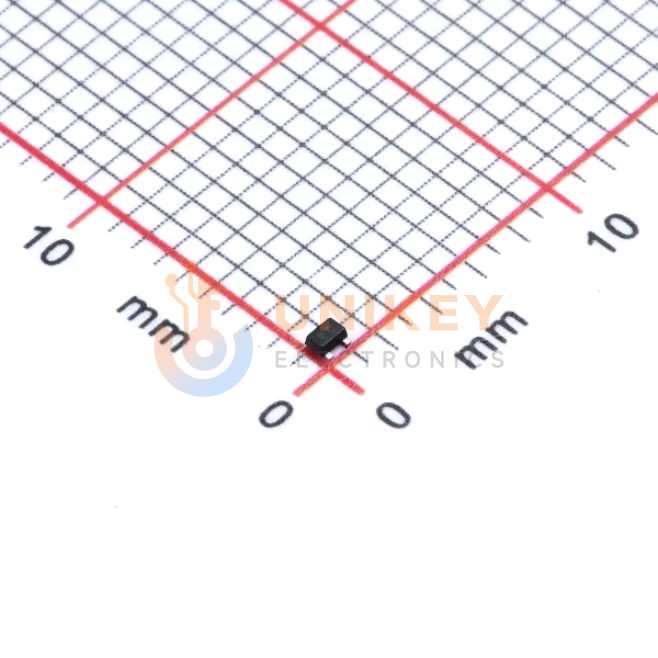

N-Ch MOSFET 60V 22A 7.5mΩ@11A,10V 2.32nF@30V 4V@300µA 31nC@10V 1.6W(Ta) 45W(Tc) SOP-ADVANCE-8 SMD 5mm×5mm×950μm
Other Names:TPH7R506NH,L1Q
Manufacturer:Toshiba
Manufacturer Part:TPH7R506NH,L1Q
Datasheet:Toshiba TPH7R506NH,L1Q Datasheet (PDF)
Email Document
Available Stock
Available to order:15,494
Estimated Ship Time:6-13 working days
Quantity
6
Unit Price (USD)
$2.3345
Ext. Price (USD)
$14.00
Total price$14.00
MOQ6Mult1SPQ1
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$2.3345
$2.33
10
$1.4605
$14.60
100
$0.9196
$91.96
500
$0.716
$358.00
1,000
$0.6642
$664.20
2,500
$0.5821
$1,455.25
5,000
$0.5454
$2,727.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Manufacturer | |
| Current-Continuous Drain (Id) @25°C | 22A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 2320 pF @ 30 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 1.6W (Ta), 45W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 4V @ 300µA |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V |
| Package/Case | 8-PowerVDFN |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | TPH7R506 |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 11A, 10V |
| Rid | 3587040 |
| Series | U-MOSVIII-H |
| Supplier Device Package | 8-SOP Advance (5x5) |
| Technology | MOSFET (Metal Oxide) |
