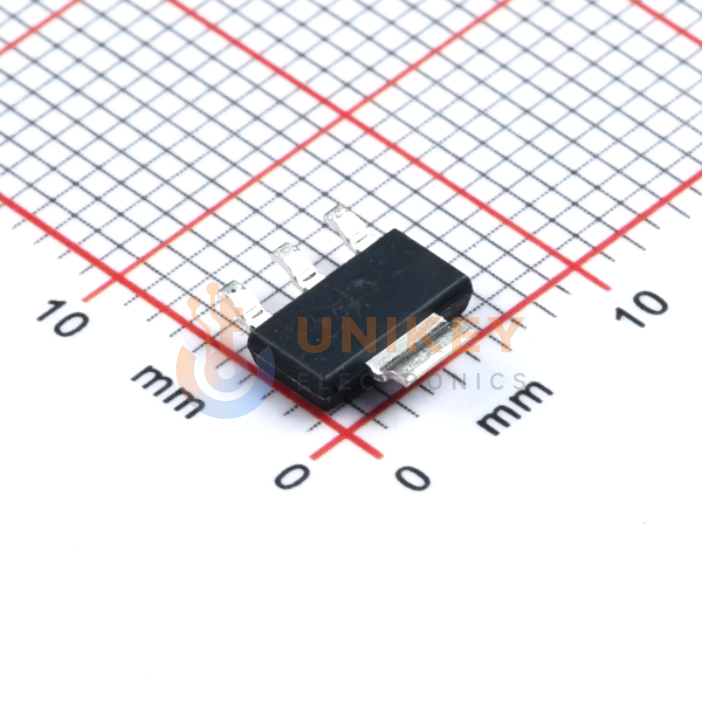

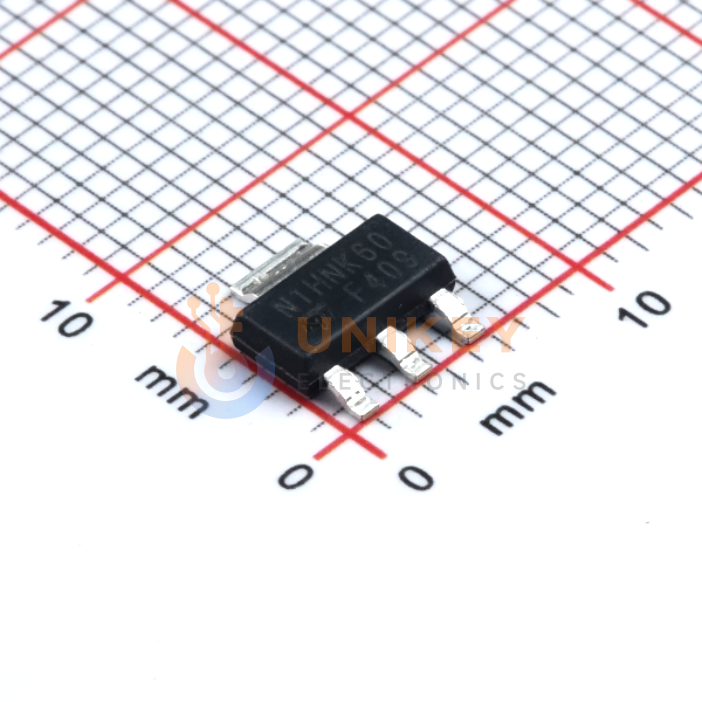

STMicroelectronics STN1HNK60 image
Images are for reference only

STN1HNK60

STMicroelectronics MDmesh SuperMESH MOSFET, N-Channel, Vds=600V, Id=400mA, SOT-223 Package, SMD, 3-Pin

Other Names:STN1HNK60

more
STN1HNK60

Manufacturer:STMicroelectronics

Manufacturer Part:STN1HNK60

Email Document
ECAD Model:

In Stock

324 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.2458

Ext. Price (USD)

$1.22

Total price$1.22
MOQ5Mult1SPQ4,000DC2409+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.2458
$1.22
50
$0.1954
$9.77
150
$0.1736
$26.04
500
$0.1306
$65.30
2,500
$0.1186
$296.50
4,000
$0.1114
$445.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-Continuous Drain (Id) @25°C
400mA (Tc)
Input Capacitance (Ciss) (Max) @ Vds
156 pF @ 25 V
Drain to Source Voltage (Vdss)
600 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Power Dissipation (Max)
3.3W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Vgs (Max)
±30V
Vgs(th) (Max) @ Id
3.7V @ 250µA
FET Type
N-Channel
Gate Charge (Qg) (Max) @ Vgs
10 nC @ 10 V
Package/Case
TO-261-4, TO-261AA
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
STN1HNK60
FET Feature
-
Mounting Type
Surface Mount
Rds On (Max) @ Id, Vgs
8.5Ohm @ 500mA, 10V
Rid
810947
Series
SuperMESH™
Supplier Device Package
SOT-223
Technology
MOSFET (Metal Oxide)
