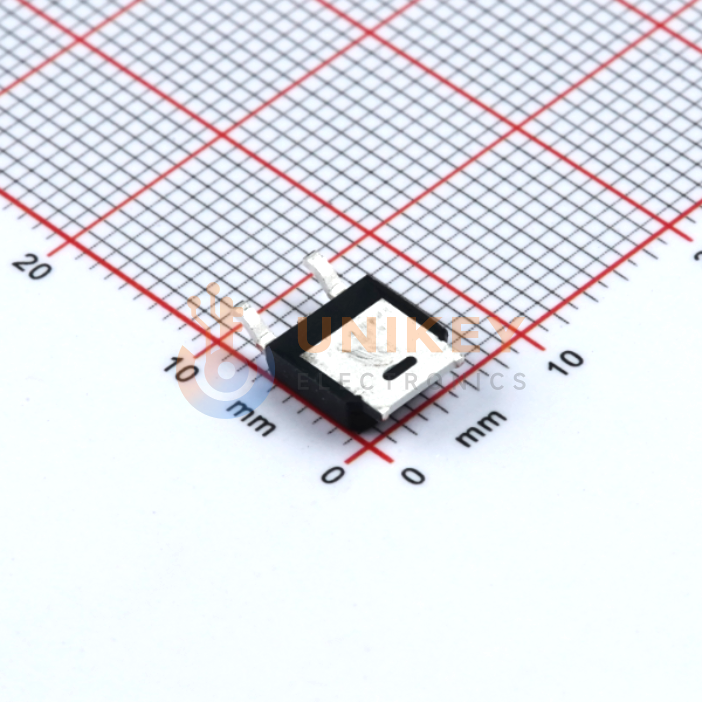

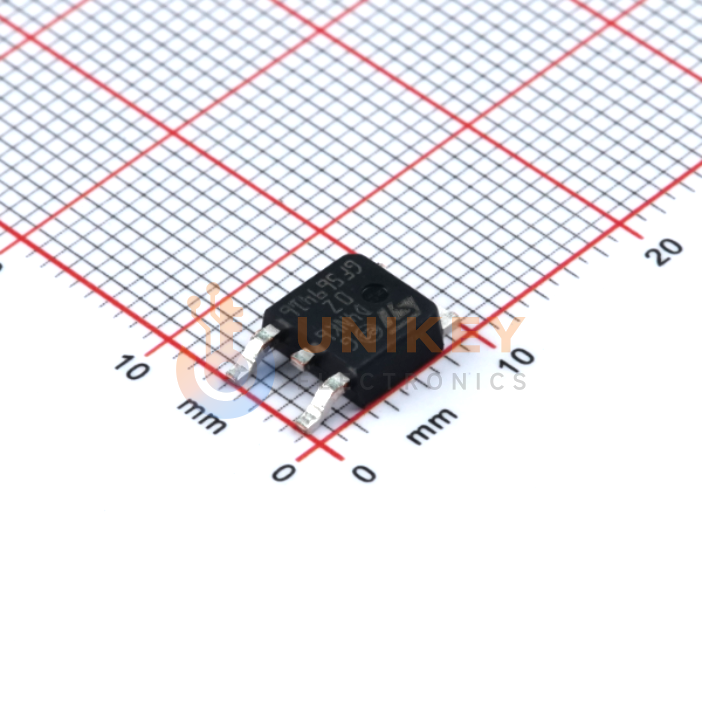

STMicroelectronics STD4NK60ZT4 image
Images are for reference only

STD4NK60ZT4

70W(Tc) 30V 4.5V@50µA 26nC@10V N-Ch 600V 2Ω@2A,10V 4A 510pF@25V DPAK, TO-252-3 SMD 2.63mm H

Other Names:STD4NK60Z

more
STD4NK60ZT4

Manufacturer:STMicroelectronics

Manufacturer Part:STD4NK60ZT4

Email Document
ECAD Model:

In Stock

4 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.2413

Ext. Price (USD)

$0.24

Total price$0.24
MOQ1Mult1SPQ2,500DC2416+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.2413
$0.24
10
$0.2224
$2.22
30
$0.2047
$6.14
100
$0.1839
$18.39
500
$0.1726
$86.30
1,000
$0.1621
$162.10
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-Continuous Drain (Id) @25°C
4A (Tc)
Input Capacitance (Ciss) (Max) @ Vds
510 pF @ 25 V
Drain to Source Voltage (Vdss)
600 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Power Dissipation (Max)
70W (Tc)
Operating Temperature
150°C (TJ)
Vgs (Max)
±30V
Vgs(th) (Max) @ Id
4.5V @ 50µA
FET Type
N-Channel
Gate Charge (Qg) (Max) @ Vgs
26 nC @ 10 V
Package/Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
STD4NK60
FET Feature
-
Mounting Type
Surface Mount
Rds On (Max) @ Id, Vgs
2Ohm @ 2A, 10V
Rid
1578579
Series
SuperMESH™
Supplier Device Package
DPAK
Technology
MOSFET (Metal Oxide)
