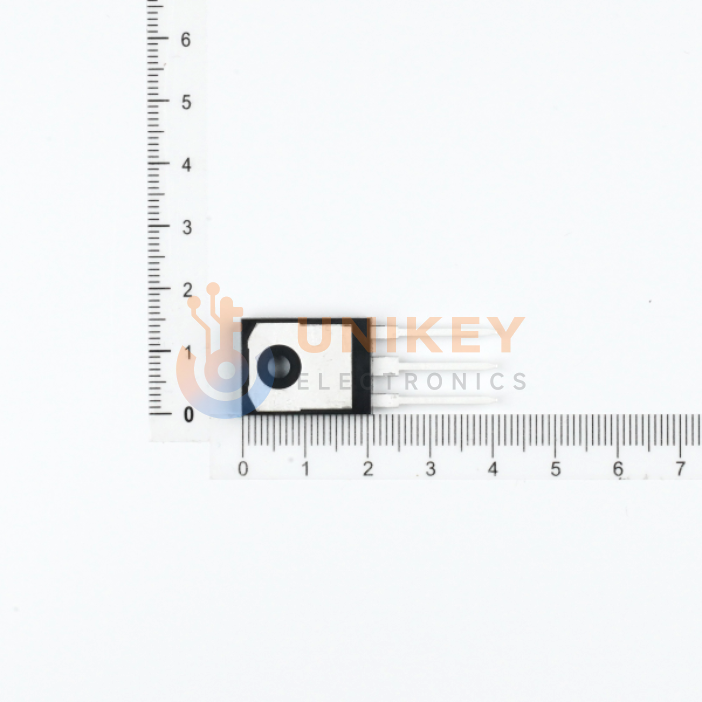

Infineon Technologies IPW60R070CFD7 image
Images are for reference only

IPW60R070CFD7

156W 20V 3.5V 67nC 1-Channel N-Ch 600V 129mΩ 20A 2.721nF TO-247 TH

Other Names:IPW60R070CFD7

more
IPW60R070CFD7XKSA1

Manufacturer Part:IPW60R070CFD7

Email Document
ECAD Model:

In Stock

45 In stock, ready to ship

Quantity

1

Unit Price (USD)

$5.3776

Ext. Price (USD)

$5.37

Total price$5.37
MOQ1Mult1SPQ30DC2310+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$5.3776
$5.37
10
$4.7633
$47.63
30
$4.4052
$132.15
90
$4.0356
$363.20
510
$3.8685
$1,972.93
990
$3.7899
$3,752.00
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Compliant
Package / Case (Metric)
TO-247
Mounting Type
Through hole mounting
Application Level
Industrial
Product Status
On sale
SPM
Tube
Operating Temperature
-55℃~150℃
Length/Width/Height
Max. Input Capacitance Ciss (various Vds)
2.721nF
Configuration
-
Continuous Drain Current (Id)
20A
On-State Drain-Source Resistance (Rds(on))
129mΩ
Drain-Source Breakdown Voltage (Vds)
600V
FET Type
1individualNChannel
Gate Charge
67nC
Gate-Source Threshold Voltage (Vgs(th))
3.5V
Gate Source Voltage
20V
Max Power Dissipation
156W
Number of Channels
1
