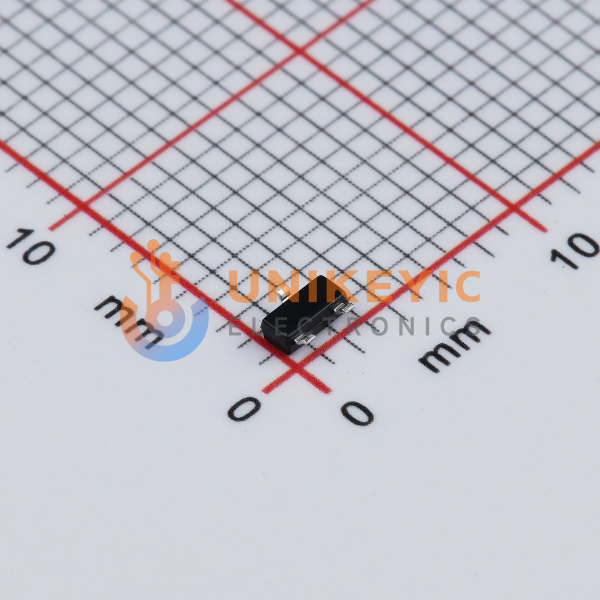

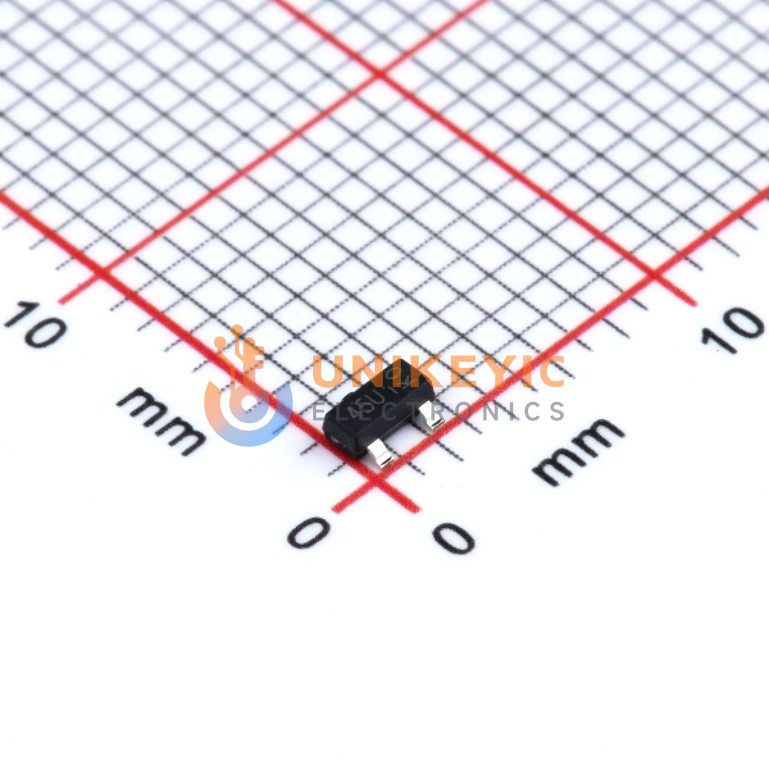

DIODES DMP2045U-7 image
Images are for reference only

DMP2045U-7

Diodes Incorporated P-Ch Enhancement MOSFET, Vds=20V, 4.3A, 3-Pin SOT-23, SMD

Other Names:DMP2045U7

more
DMP2045U-7

Manufacturer:DIODES

Manufacturer Part:DMP2045U-7

Email Document
ECAD Model:

In Stock

103,570 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1355

Ext. Price (USD)

$0.67

Total price$0.67
MOQ5Mult1SPQ3,000DC2550+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1355
$0.67
50
$0.1074
$5.37
150
$0.0934
$14.01
500
$0.0828
$41.40
3,000
$0.0744
$223.20
6,000
$0.0702
$421.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-Continuous Drain (Id) @25°C
4.3A (Ta)
Input Capacitance (Ciss) (Max) @ Vds
634 pF @ 10 V
Drain to Source Voltage (Vdss)
20 V
Drive Voltage (Max Rds On, Min Rds On)
1.8V, 4.5V
Power Dissipation (Max)
800mW (Ta)
Operating Temperature
-55°C ~ 150°C (TJ)
Vgs (Max)
±8V
Vgs(th) (Max) @ Id
1V @ 250µA
FET Type
P-Channel
Gate Charge (Qg) (Max) @ Vgs
6.8 nC @ 4.5 V
Package/Case
TO-236-3, SC-59, SOT-23-3
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
DMP2045
FET Feature
-
Mounting Type
Surface Mount
Rds On (Max) @ Id, Vgs
45mOhm @ 4A, 4.5V
Rid
8275356
Series
-
Supplier Device Package
SOT-23-3
Technology
MOSFET (Metal Oxide)
