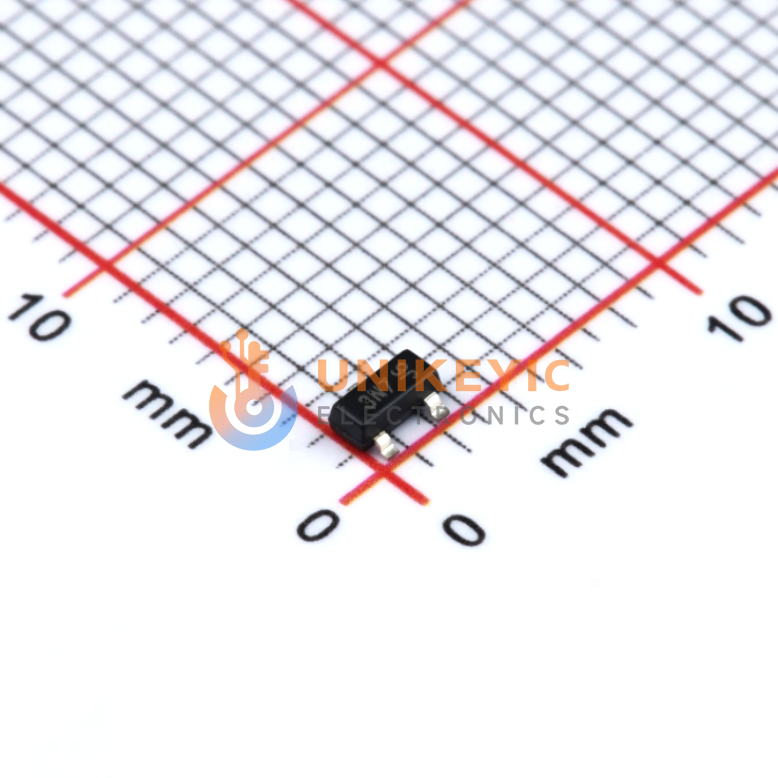

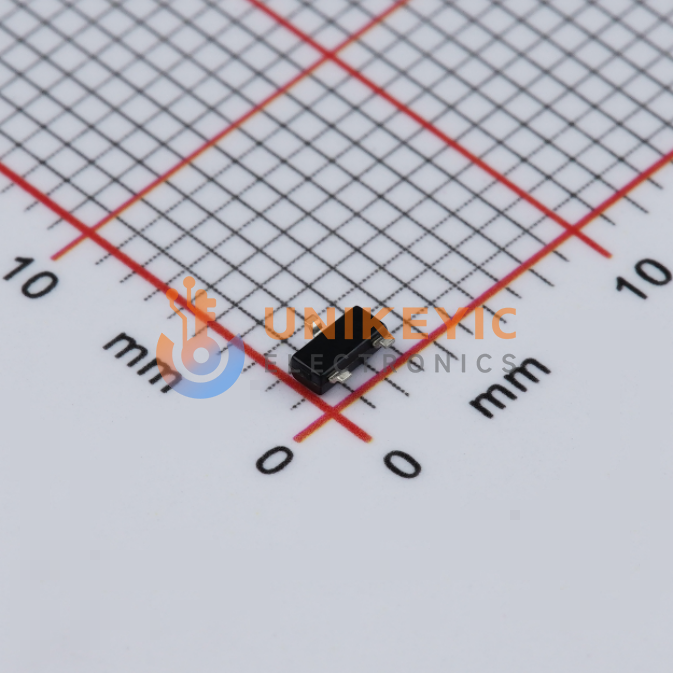

DIODES DMN3023L-7 image
Images are for reference only

DMN3023L-7

N-Ch MOSFET 20V 30V 6.2A 25mΩ@4A,10V 900mW(Ta) 18.4nC@10V 873pF@15V SOT-23-3 SMD 2.9mm × 1.3mm × 1.03mm

Other Names:DMN3023L7

more
DMN3023L-7

Manufacturer:DIODES

Manufacturer Part:DMN3023L-7

Email Document
ECAD Model:

In Stock

7,357 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0852

Ext. Price (USD)

$0.08

Total price$0.08
MOQ1Mult1SPQ3,000DC2436+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0852
$0.08
3,000
$0.0789
$236.70
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-Continuous Drain (Id) @25°C
6.2A (Ta)
Input Capacitance (Ciss) (Max) @ Vds
873 pF @ 15 V
Drain to Source Voltage (Vdss)
30 V
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 10V
Power Dissipation (Max)
900mW (Ta)
Operating Temperature
-55°C ~ 150°C (TJ)
Vgs (Max)
±20V
Vgs(th) (Max) @ Id
1.8V @ 250µA
FET Type
N-Channel
Gate Charge (Qg) (Max) @ Vgs
18.4 nC @ 10 V
Package/Case
TO-236-3, SC-59, SOT-23-3
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
DMN3023
FET Feature
-
Mounting Type
Surface Mount
Rds On (Max) @ Id, Vgs
25mOhm @ 4A, 10V
Rid
5453119
Series
-
Supplier Device Package
SOT-23-3
Technology
MOSFET (Metal Oxide)
