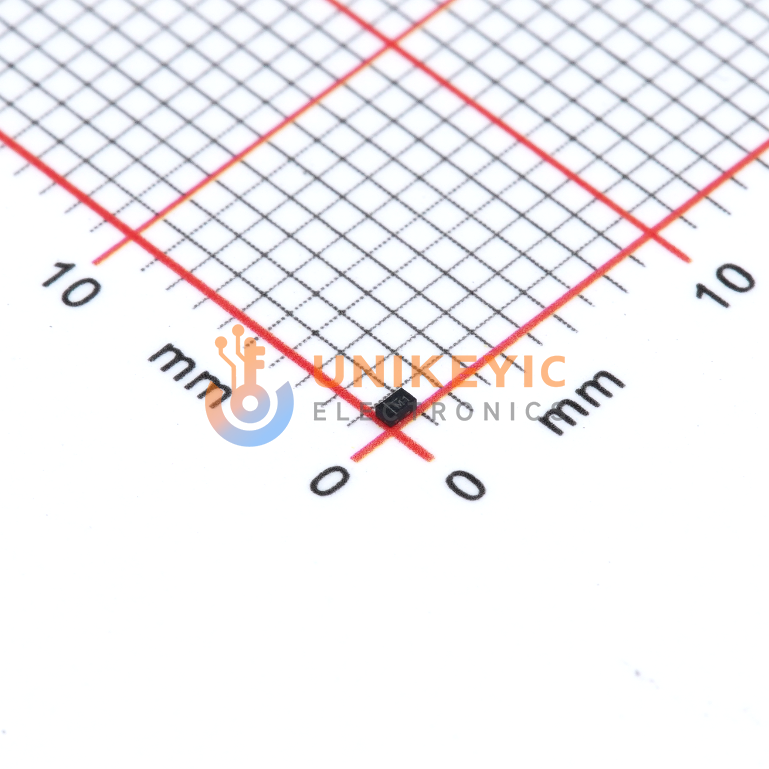

DIODES DMN26D0UFB4-7 image
Images are for reference only

DMN26D0UFB4-7

N-Ch MOSFET 20V 230mA 350mW(Ta) 3Ω@100mA,4.5V 14.1pF@15V 1.1V@250µA SMD 600μm × 1mm × 400μm

Other Names:DMN26D0UFB47

more
DMN26D0UFB4-7

Manufacturer:DIODES

Manufacturer Part:DMN26D0UFB4-7

Email Document
ECAD Model:

In Stock

3,430 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0924

Ext. Price (USD)

$0.09

Total price$0.09
MOQ1Mult1SPQ3,000DC26+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0924
$0.09
200
$0.0596
$11.92
1,500
$0.0518
$77.70
3,000
$0.0457
$137.10
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-Continuous Drain (Id) @25°C
230mA (Ta)
Input Capacitance (Ciss) (Max) @ Vds
14.1 pF @ 15 V
Drain to Source Voltage (Vdss)
20 V
Drive Voltage (Max Rds On, Min Rds On)
1.5V, 4.5V
Power Dissipation (Max)
350mW (Ta)
Operating Temperature
-55°C ~ 150°C (TJ)
Vgs (Max)
±10V
Vgs(th) (Max) @ Id
1.1V @ 250µA
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Package/Case
3-XFDFN
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
DMN26
FET Feature
-
Mounting Type
Surface Mount
Rds On (Max) @ Id, Vgs
3Ohm @ 100mA, 4.5V
Rid
2192638
Series
-
Supplier Device Package
X2-DFN1006-3
Technology
MOSFET (Metal Oxide)

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

When replacing the DIODES DMN26D0UFB4-7, compare the manufacturer datasheets rather than assuming a drop-in substitute. Check the X2-DFN1006-3 package, terminal arrangement, marking orientation, VDSS 20 V, VGSS ±10 V, current rating, 350 mW power dissipation at TA = +25°C, RDS(ON) max 3.0Ω at VGS = 4.5V and ID = 100mA, capacitance, switching conditions, operating temperature, compliance status, and lifecycle status.
