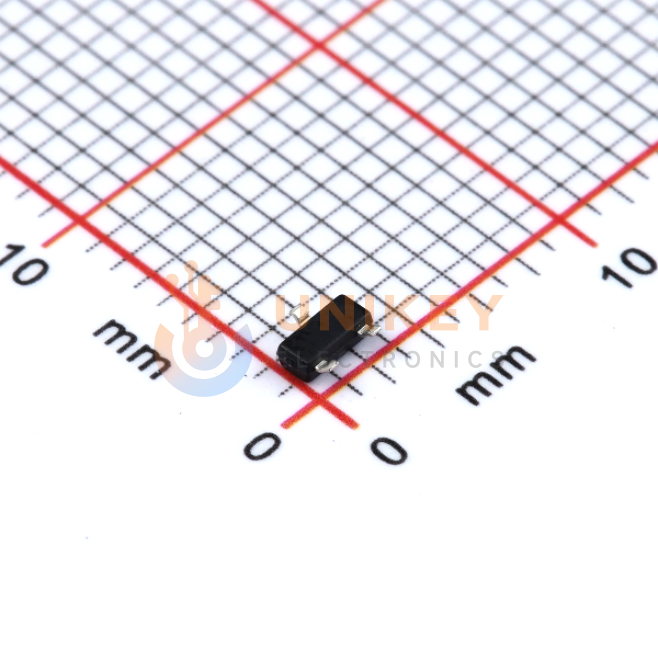

DMG2305UX-7
DiodesZetex P-Ch MOSFET Vds=20V 3.3A SOT-23 SMD 3-Pin
Other Names:DMG2305UX-7
more
DMG2305UX7
Manufacturer:DIODES
Manufacturer Part:DMG2305UX-7
Datasheet:DIODES DMG2305UX-7 Datasheet (PDF)
Email Document
In Stock
8,758 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.4591
Ext. Price (USD)
$0.45
Total price$0.45
MOQ1Mult1SPQ3,000DC2601+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.4591
$0.45
10
$0.3478
$3.47
30
$0.2974
$8.92
100
$0.2515
$25.15
500
$0.2383
$119.15
1,000
$0.2309
$230.90
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current-Continuous Drain (Id) @25°C | 4.2A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 808 pF @ 15 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Power Dissipation (Max) | 1.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vgs (Max) | ±8V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 10.2 nC @ 4.5 V |
| Package/Case | TO-236-3, SC-59, SOT-23-3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | DMG2305 |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 4.2A, 4.5V |
| Rid | 4340666 |
| Series | - |
| Supplier Device Package | SOT-23-3 |
| Technology | MOSFET (Metal Oxide) |
