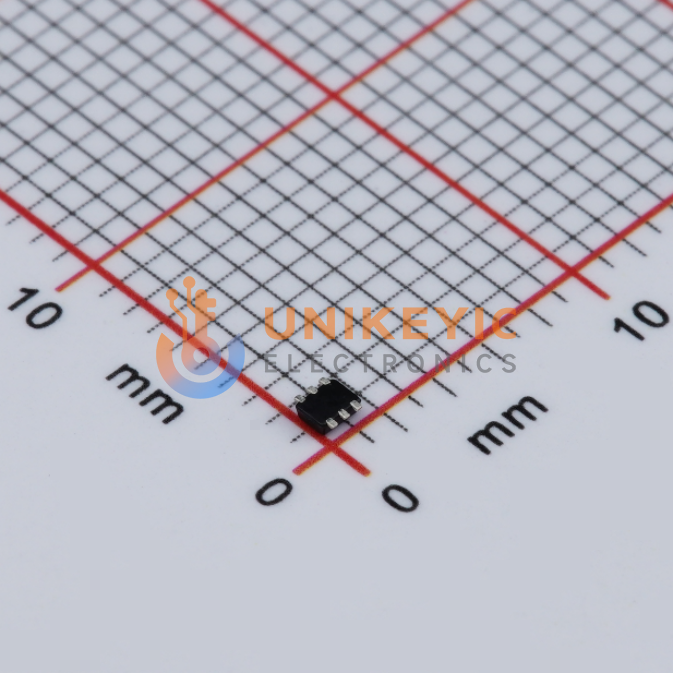

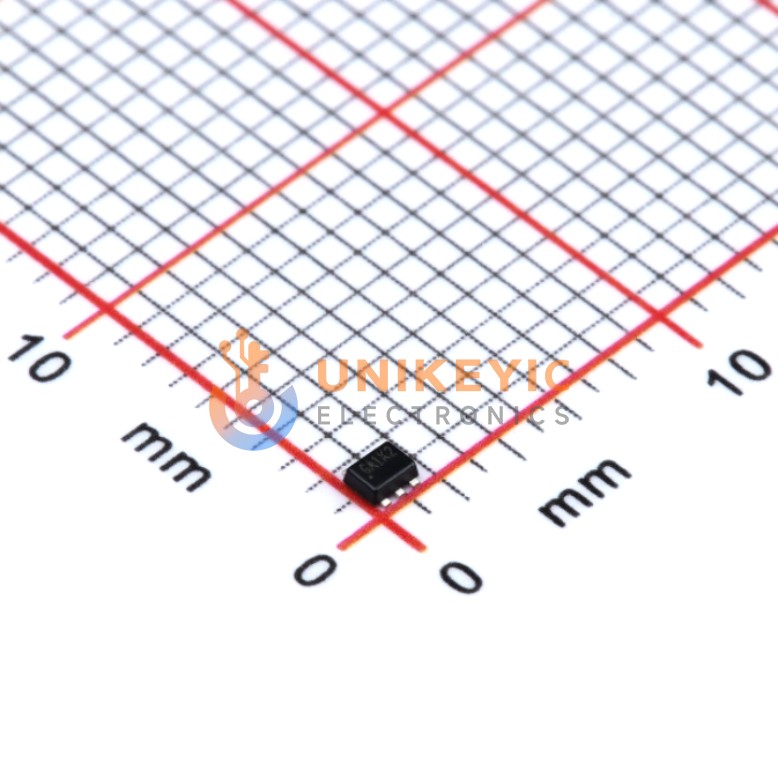

Images are for reference only
DMG1029SV-7
DiodesZetex N/P-Ch MOSFET Vds=60V 280mA 620mA SOT-563 SMD 6-Pin
Other Names:DMG1029SV7
more
DMG1029SV-7
Manufacturer:DIODES
Manufacturer Part:DMG1029SV-7
Datasheet:DIODES DMG1029SV-7 Datasheet (PDF)
Email Document
In Stock
2 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.1058
Ext. Price (USD)
$0.10
Total price$0.10
MOQ1Mult1SPQ3,000DC22+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1058
$0.10
200
$0.073
$14.60
1,500
$0.0663
$99.45
3,000
$0.062
$186.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current-Continuous Drain (Id) @25°C | 500mA, 360mA |
| Input Capacitance (Ciss) (Max) @ Vds | 30pF @ 25V, 25pF @ 25V |
| Drain to Source Voltage (Vdss) | 60V |
| Power - Max | 450mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.3nC @ 4.5V |
| Package/Case | SOT-563, SOT-666 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | DMG1029 |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 1.7Ohm @ 500mA, 10V |
| Rid | 2767839 |
| Series | - |
| Supplier Device Package | SOT-563 |
| Technology | MOSFET (Metal Oxide) |
