DMG1012UW-7

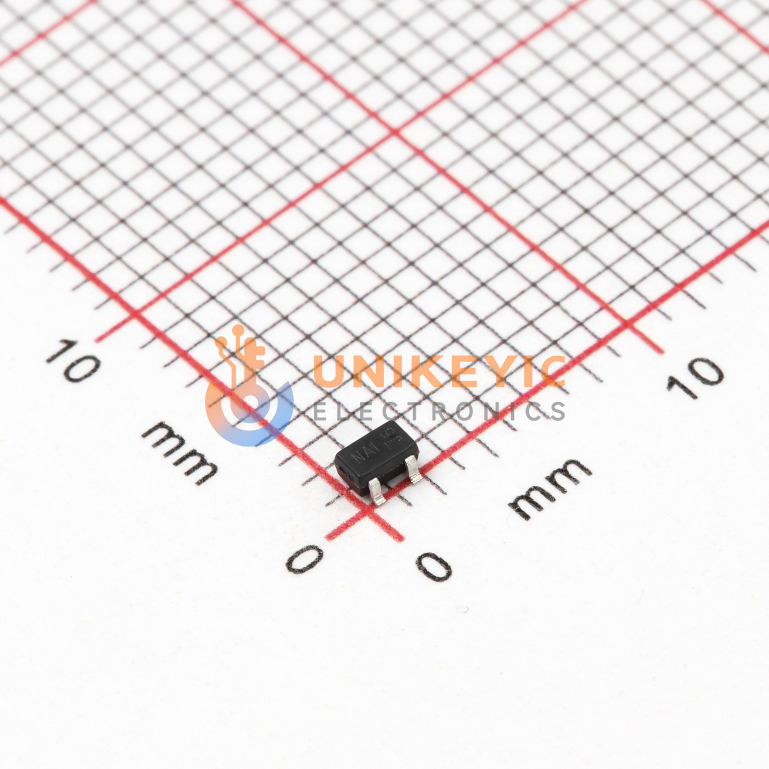

Diodes Inc N-Ch MOSFET, Vds=20 V, 1 A, SOT-323, SMD, 3-Pin
Other Names:DMG1012UW-7
more
DMG1012UW7
Manufacturer:DIODES
Manufacturer Part:DMG1012UW-7
Datasheet:DIODES DMG1012UW-7 Datasheet (PDF)
Email Document
In Stock
1 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.7233
Ext. Price (USD)
$0.72
Total price$0.72
MOQ1Mult1SPQ3,000DC2141+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.7233
$0.72
10
$0.5976
$5.97
30
$0.5324
$15.97
100
$0.3684
$36.84
500
$0.34
$170.00
1,000
$0.3248
$324.80
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current-Continuous Drain (Id) @25°C | 1A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 60.67 pF @ 16 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Power Dissipation (Max) | 290mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vgs (Max) | ±6V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 0.74 nC @ 4.5 V |
| Package/Case | SC-70, SOT-323 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | DMG1012 |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 600mA, 4.5V |
| Rid | 2183253 |
| Series | - |
| Supplier Device Package | SOT-323 |
| Technology | MOSFET (Metal Oxide) |
Frequently Asked Questions (FAQs)
A possible replacement for DIODES DMG1012UW-7 should not be treated as a confirmed drop-in substitute without datasheet comparison. The DIODES datasheet specifies an N-channel enhancement mode MOSFET in SOT-323 with Gate, Source, and Drain terminal markings, 20 V VDSS, ±6 V VGSS, and specified leakage, capacitance, gate charge, and switching characteristics. Buyers and engineers should compare package, pinout, voltage and current ratings, thermal limits, leakage, switching data, compliance status, and lifecycle before approving an alternative.
