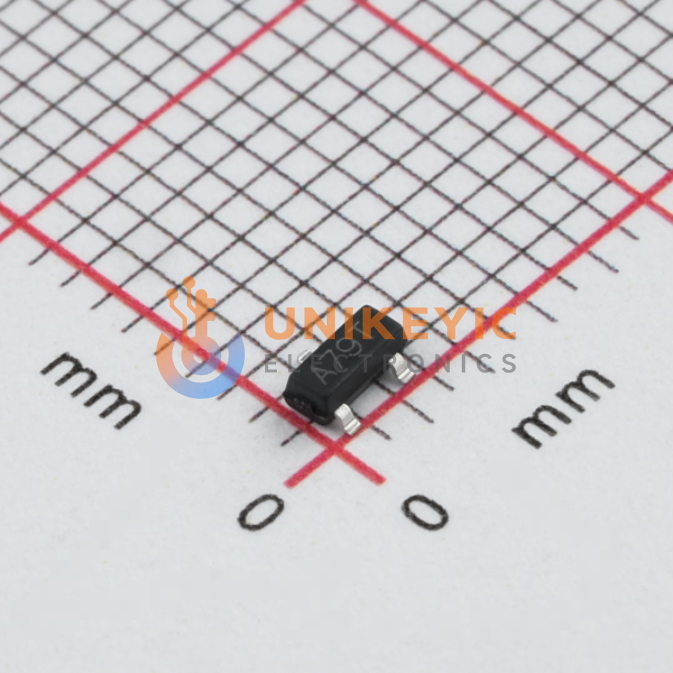

UMW AO3407A image
Images are for reference only

AO3407A

1.4W 20V 3V@250µA 14.3nC@4.5V P-Ch 30V VGS=-4.5V,ID=-3A 0.087V 4.1A 700pF@15V SOT-23 SMD

Other Names:AO3407A

Manufacturer:UMW

Manufacturer Part:AO3407A

Email Document
ECAD Model:

In Stock

9,106 In stock, ready to ship

Quantity

20

Unit Price (USD)

$0.0329

Ext. Price (USD)

$0.65

Total price$0.65
MOQ20Mult20SPQ3,000DC2617+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0329
$0.32
100
$0.0259
$2.59
300
$0.0224
$6.72
3,000
$0.019
$57.00
6,000
$0.018
$108.00
9,000
$0.0173
$155.70
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-Continuous Drain (Id) @25°C
4.2A (Ta)
Input Capacitance (Ciss) (Max) @ Vds
700 pF @ 15 V
Drain to Source Voltage (Vdss)
30 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Power Dissipation (Max)
1.4W (Ta)
Operating Temperature
150°C (TJ)
Vgs (Max)
±20V
Vgs(th) (Max) @ Id
3V @ 250µA
FET Type
P-Channel
Gate Charge (Qg) (Max) @ Vgs
14.3 nC @ 4.5 V
Package/Case
TO-236-3, SC-59, SOT-23-3
Moisture Sensitivity Level (MSL)
1 (Unlimited)
FET Feature
-
Mounting Type
Surface Mount
Rds On (Max) @ Id, Vgs
52mOhm @ 4.1A, 10V
Series
UMW
Supplier Device Package
SOT-23
Technology
MOSFET (Metal Oxide)
