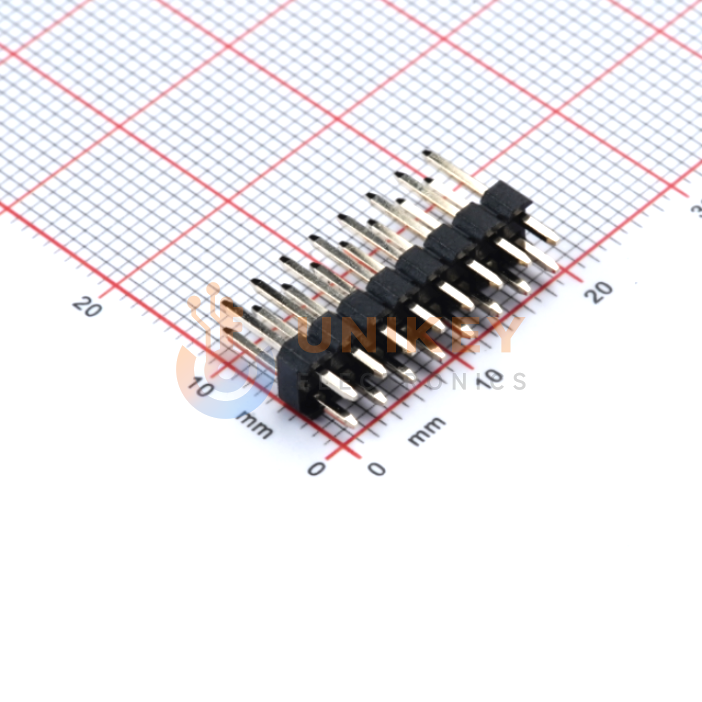

Amphenol 98414-G08-08LF image
Images are for reference only

98414-G08-08LF

8-Pin 2mm 2-2mm Header Latch Holder 2A(AC/DC) 760nm Gold Cream TH 10mm L × 6.1mm H

Other Names:98414-G08-08LF

more
98414G0808LF

Manufacturer:Amphenol

Manufacturer Part:98414-G08-08LF

Email Document
ECAD Model:

Available Stock

Available to order:34
Estimated Ship Time:6-13 working days

Quantity

5

Unit Price (USD)

$3.0475

Ext. Price (USD)

$15.23

Total price$15.23
MOQ5Mult1SPQ1
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$3.0475
$3.04
10
$2.783
$27.83
25
$2.519
$62.97
100
$2.3004
$230.04
200
$2.2032
$440.64
2,600
$1.8576
$4,829.76
5,000
$1.62
$8,100.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Voltage Rating
200V (AC/DC)
Operating Temperature
-
Connector Type
Header
Contact Type
Male Pin
Termination
Solder
Current Rating (Amps)
2A (AC/DC)
Contact Finish-Mating
Gold, GXT™
Contact Finish - Post
Tin
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Material
Copper Alloy
Insulation Material
Thermoplastic
Material Flammability Rating
UL94 V-0
Packaging
Box
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.157" (4.00mm)
Contact Length - Post
0.122" (3.10mm)
Contact Shape
Square
Insulation Color
Cream
Insulation Height
0.232" (5.90mm)
Mated Stacking Heights
-
Overall Contact Length
-
Pitch - Mating
0.079" (2.00mm)
Row Spacing-Mating
0.079" (2.00mm)
Applications
-
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
98414
Fastening Type
Latch Holder
Features
Keying Slot
Mounting Type
Through Hole
Number of Positions
8
Number of Positions Loaded
All
Number of Rows
2
Rid
4418657
Series
Minitek® 2.00mm
Style
Board to Board or Cable
