ZCAT2132-1130

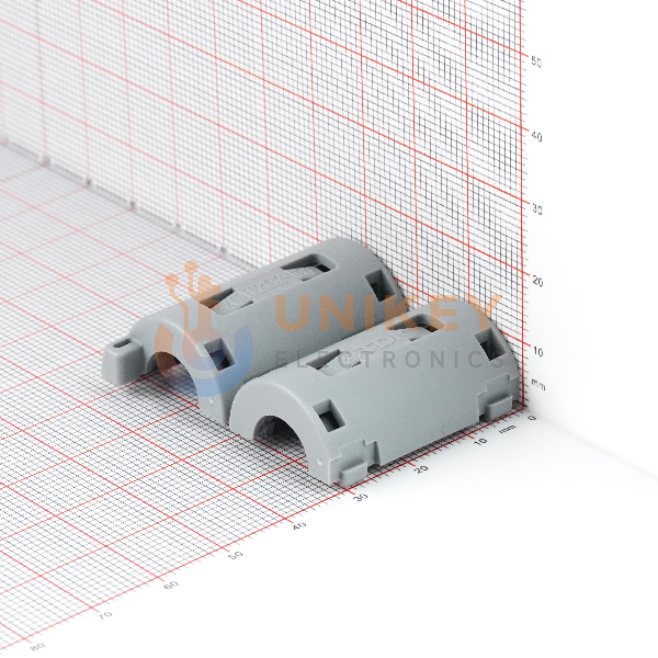

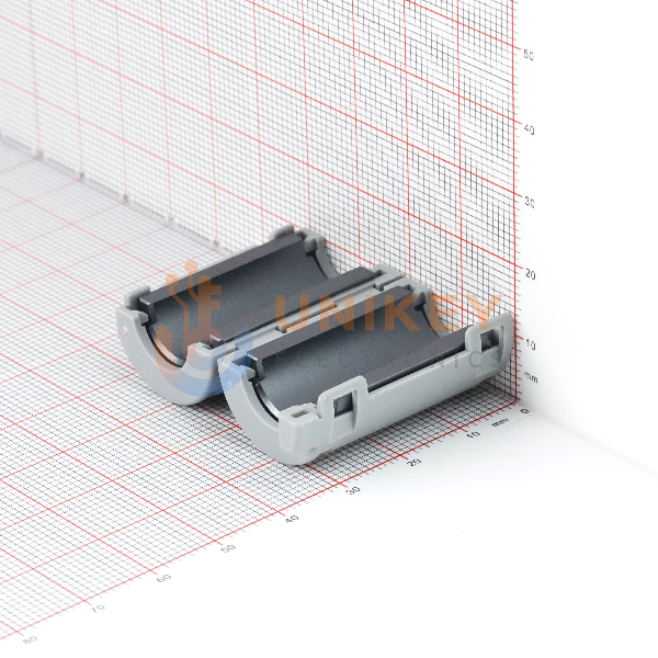

TDK ZCAT Series Snap-On Ferrite Bead, 11mm ID
Other Names:ZCAT2132-1130
more
ZCAT2132-1130
ZCAT21321130
Manufacturer:TDK
Manufacturer Part:ZCAT2132-1130
Datasheet:TDK ZCAT2132-1130 Datasheet (PDF)
Email Document
In Stock
1,290 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.6888
Ext. Price (USD)
$0.68
Total price$0.68
MOQ1Mult1SPQ480DC26+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.6888
$0.68
50
$0.5529
$27.64
480
$0.5102
$244.89
Volume discounts available for larger quantities.
Get Quote Specifications
| Attribute | Value |
| Category Name | |
| Datasheet | |
| RoHS | Compliant |
| Package / Case (Metric) | |
| Mounting Type | base mount |
| Application Level | Industrial |
| Product Status | On sale |
| SPM | bulk, Tape and reel packaging |
| Operating Temperature | -40℃~85℃ |
| Length/Width/Height | 36mm*20.5mm*20.5mm |
| Core Factor (ΣI/A) | - |
| Core Material | 30 |
| Diameter | 20.5mm |
| Effective Area (Ae) | - |
| Effective Permeability | - |
| Inductance Factor (AL/AI) | - |
| Initial Permeability | - |
| Magnetic Path Length | - |
| Magnetic Volume | - |
| Magnetic Cross-Sectional Area | - |
| Tolerance | - |
Frequently Asked Questions (FAQs)
The TDK ZCAT2132-1130 is used as a cable-mounted EMC noise suppression component rather than as a semiconductor device in a signal path. The product documentation describes placing the ferrite-core assembly around cable or power lines without cutting the line. Listed application examples include computers, displays, HDDs, digital telephones, audio equipment, electronic musical instruments, TV game equipment, copiers, and facsimile equipment. Confirm cable outside diameter and impedance needs before selection.
