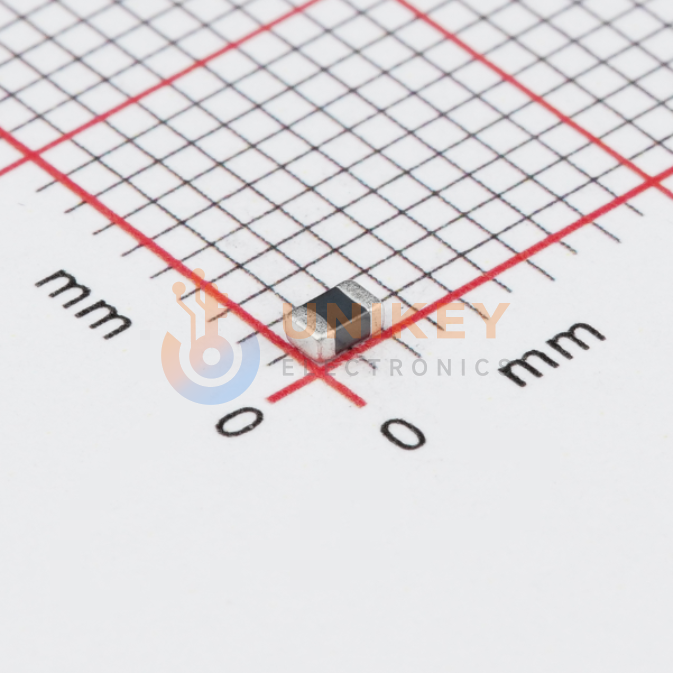

Images are for reference only
MPZ2012S102ATD25
Ferrite Bead, 1.5A, 1kΩ@100MHz, 150mΩ, 0805, SMD, 2mm × 1.25mm × 1.05mm
Other Names:MPZ2012S102ATD25
Manufacturer:TDK
Manufacturer Part:MPZ2012S102ATD25
Datasheet:TDK MPZ2012S102ATD25 Datasheet (PDF)
Email Document
Available Stock
Available to order:52,000
Estimated Ship Time:12-13 working days
Quantity
24,000
Unit Price (USD)
$0.0292
Ext. Price (USD)
$700.80
Total price$700.80
MOQ24,000Mult4,000SPQ4,000
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
4,000
$0.0292
$116.80
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Operating Temperature | -55°C ~ 125°C |
| Number of Lines | 1 |
| Current Rating (Max) | 1.5A |
| DC Resistance (DCR) (Max) | 150mOhm |
| Height (Max) | 0.041" (1.05mm) |
| Package/Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Filter Type | Power Line |
| Mounting Type | Surface Mount |
| Ratings | AEC-Q200 |
| Series | MPZ |
Frequently Asked Questions (FAQs)
The TDK MPZ2012S102ATD25 is used as a power-line chip bead for EMC noise reduction. The datasheet lists applications such as various ECUs, powertrains, body controls, and car multimedia systems including telematics. For circuit selection, engineers should check the 1000Ω impedance at 100MHz, 1.5A maximum rated current, 0.150Ω maximum DC resistance, -55°C to +125°C temperature range, and the rated-current derating information for operation at 85°C or above.
