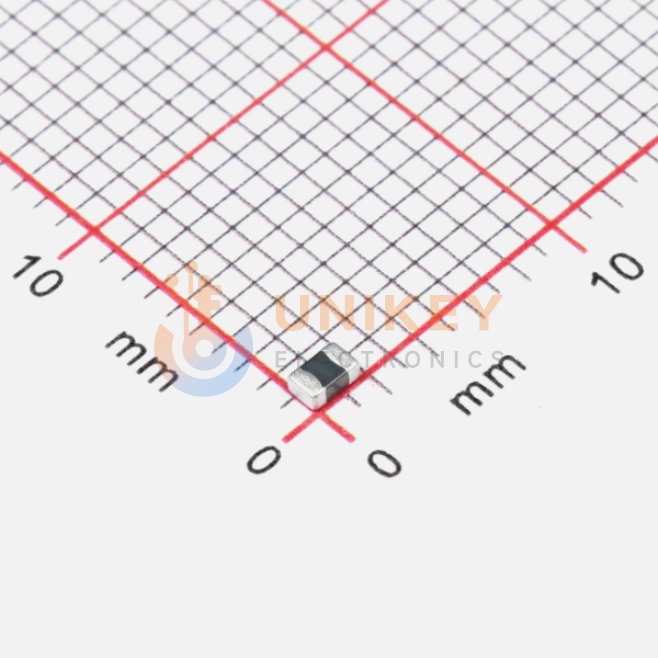

Images are for reference only
MPZ2012S101AT000
Ferrite Bead, 4A, 100Ω@100MHz, 20mΩ, 0805, SMD, 2mm × 1.25mm × 1.05mm
Other Names:MPZ2012S101AT000
Manufacturer:TDK
Manufacturer Part:MPZ2012S101AT000
Datasheet:TDK MPZ2012S101AT000 Datasheet (PDF)
Email Document
In Stock
378,532 In stock, ready to ship
Quantity
50
Unit Price (USD)
$0.0131
Ext. Price (USD)
$0.65
Total price$0.65
MOQ50Mult50SPQ4,000DC2607+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0131
$0.01
4,000
$0.0103
$41.20
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Impedance @ Frequency | 100 Ohms @ 100 MHz |
| Operating Temperature | -55°C ~ 125°C |
| Number of Lines | 1 |
| Current Rating (Max) | 4A |
| DC Resistance (DCR) (Max) | 20mOhm |
| Height (Max) | 0.041" (1.05mm) |
| Package/Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Filter Type | Power Line |
| Mounting Type | Surface Mount |
| Ratings | - |
| Series | MPZ |
Frequently Asked Questions (FAQs)
For TDK MPZ2012S101AT000, the manufacturer datasheet lists the MPZ2012 operating temperature range as -55 to +125°C and indicates that rated current above 85°C must follow temperature derating. Frequency behavior is specified for the MPZ2012S series with impedance and Z, X, and R frequency characteristics that include MPZ2012S101AT000. Use these characteristics together with the 100 Ω at 100 MHz rating when checking application fit.
