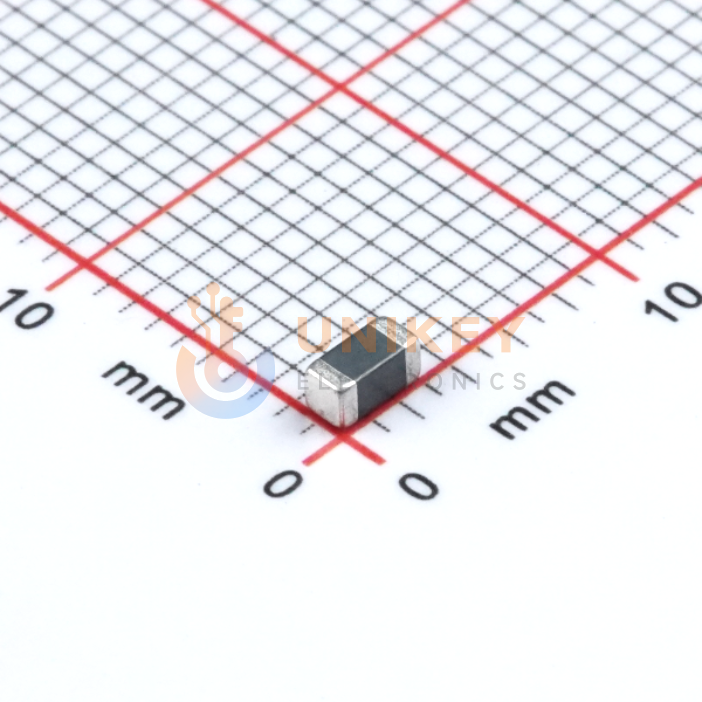

Murata BLM31KN121SH1L image
Images are for reference only

BLM31KN121SH1L

6A 120Ω@100MHz 20mΩ 1206 SMD Ferrite Bead, 3.2mm × 1.6mm × 1.8mm

Other Names:BLM31KN121SH1L

Manufacturer:Murata

Manufacturer Part:BLM31KN121SH1L

Email Document
ECAD Model:

In Stock

541 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.2869

Ext. Price (USD)

$1.43

Total price$1.43
MOQ5Mult5SPQ2,500DC2549+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.2869
$1.43
50
$0.2437
$12.18
150
$0.2244
$33.66
500
$0.2016
$100.80
2,500
$0.1914
$478.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
120 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
6A
DC Resistance (DCR) (Max)
20mOhm
Height (Max)
0.071" (1.80mm)
Package/Case
1206 (3216 Metric)
Size / Dimension
0.126" L x 0.063" W (3.20mm x 1.60mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM31KN
Features
-
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
AEC-Q200
Rid
7564088
Series
BLM

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

According to the Murata BLM31KN_SH rating information, BLM31KN121SH1L is the 120Ω nominal option at 100MHz, alongside other Murata variants rated at 270Ω, 470Ω, 600Ω, 800Ω, and 1000Ω. Its rated current is 6000mA at 85°C and 4000mA at 125°C. For substitution decisions, compare the exact impedance, current derating, DC resistance, package, compliance, and lifecycle data rather than assuming interchangeability.
