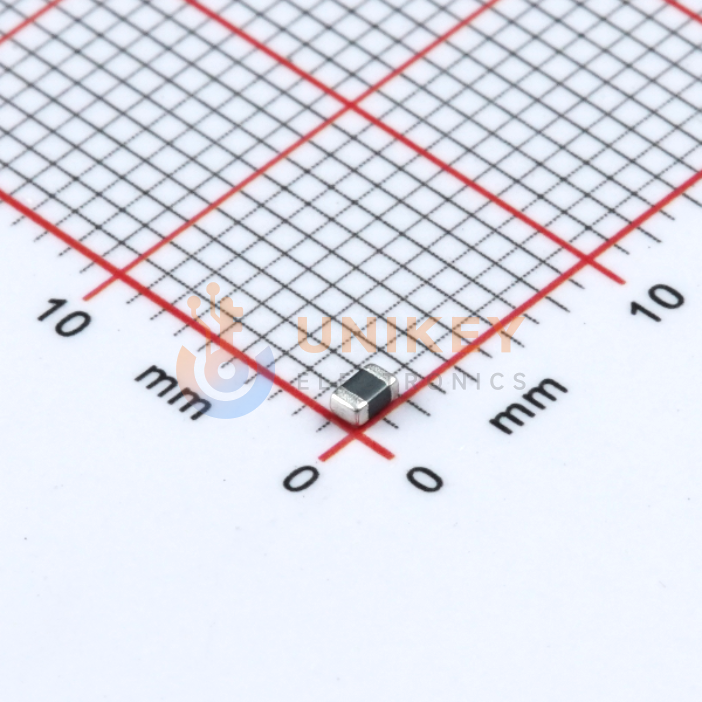

Murata BLM21AG102SN1D image
Images are for reference only

BLM21AG102SN1D

600mA 1KΩ@ 100MHz 280mΩ 0805 SMD mount 2mm*1.25mm*1.05mm

Other Names:BLM21AG102SN1D

Manufacturer:Murata

Manufacturer Part:BLM21AG102SN1D

Email Document
ECAD Model:

In Stock

276,848 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0185

Ext. Price (USD)

$0.92

Total price$0.92
MOQ50Mult50SPQ4,000DC2602+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0185
$0.01
4,000
$0.0148
$59.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
1 kOhms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
600mA
DC Resistance (DCR) (Max)
280mOhm
Height (Max)
0.041" (1.05mm)
Package/Case
0805 (2012 Metric)
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM21AG
Filter Type
-
Mounting Type
Surface Mount
Ratings
-
Rid
468922
Series
EMIFIL®, BLM21

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The manufacturer documentation for Murata BLM21AG102SN1D does not provide a detailed impedance-versus-frequency curve. It specifies the rated impedance as 1000±25% at 100MHz, measured at 100MHz±1MHz, and notes that the resistance element becomes dominant at high frequencies. For circuit evaluation, buyers and engineers should use the 100MHz rating as the specified datasheet point and validate performance across the application’s actual frequency range.
