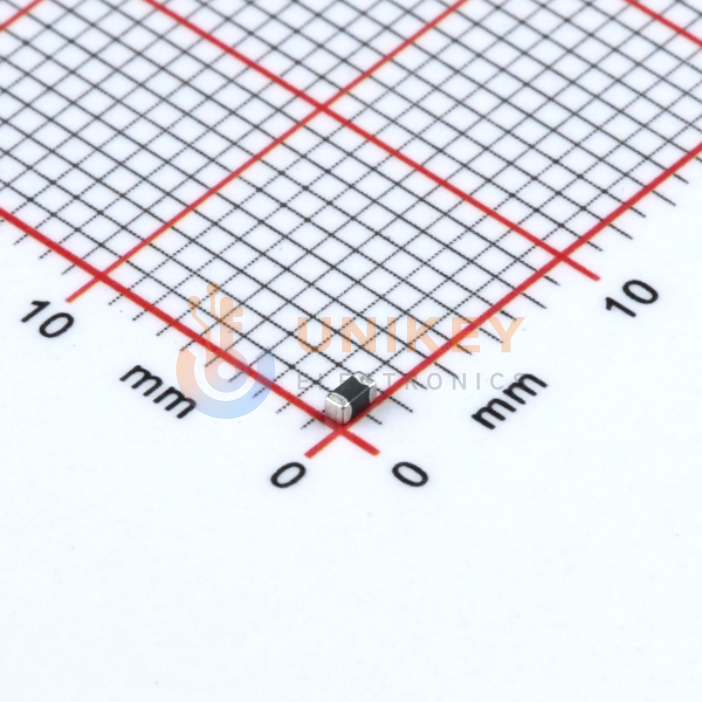

Murata BLM18PG221SN1D image
Images are for reference only

BLM18PG221SN1D

1.4A 220Ω@100MHz 100mΩ Ferrite Bead 0603 SMD 1.6mm × 800μm × 950μm

Other Names:BLM18PG221SN1D

Manufacturer:Murata

Manufacturer Part:BLM18PG221SN1D

Email Document
ECAD Model:

In Stock

362,570 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0087

Ext. Price (USD)

$0.43

Total price$0.43
MOQ50Mult50SPQ4,000DC2615+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0087
$0.00
4,000
$0.0069
$27.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
220 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
1.4A
DC Resistance (DCR) (Max)
100mOhm
Height (Max)
0.037" (0.95mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18PG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing BLM18PG221SN1D, the manufacturer datasheet gives the controlled impedance point as 220±25% Ω at 100MHz, measured at 100MHz±1MHz with specified test equipment or equivalent. The same documentation notes that the resistance element becomes dominant at high frequencies. For selection work, use the 100MHz value as the stated reference point and confirm frequency-characteristic requirements against the current manufacturer data for the target noise frequency.
