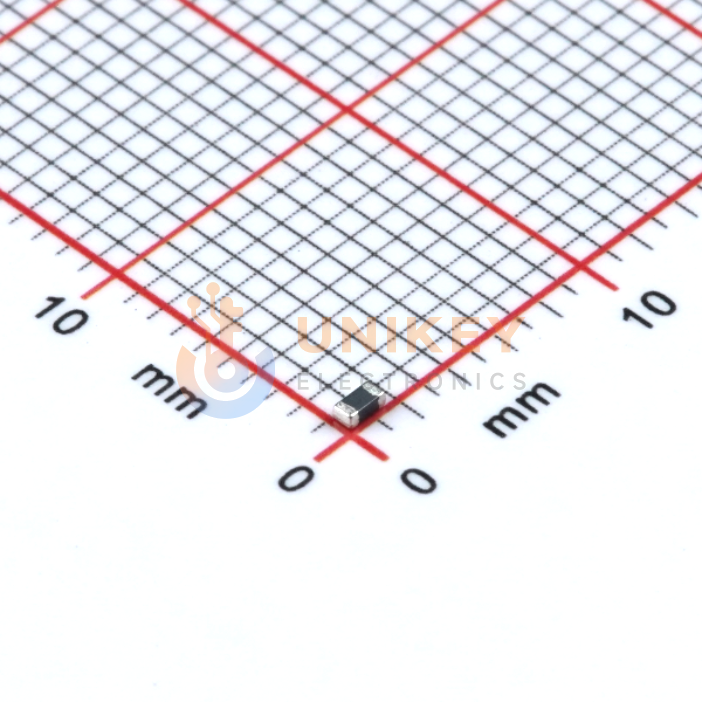

Murata BLM18KG700TN1D image
Images are for reference only

BLM18KG700TN1D

Ferrite Bead, 3.5A 70Ω@100MHz 22mΩ 0603 SMD, 1.6mm × 800μm × 750μm

Other Names:BLM18KG700TN1D

Manufacturer:Murata

Manufacturer Part:BLM18KG700TN1D

Email Document
ECAD Model:

In Stock

55,861 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0143

Ext. Price (USD)

$0.07

Total price$0.07
MOQ5Mult5SPQ4,000DC2517+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0143
$0.01
4,000
$0.0114
$45.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
70 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
3.5A
DC Resistance (DCR) (Max)
22mOhm
Height (Max)
0.030" (0.75mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Rid
1982791
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

Murata Manufacturing BLM18KG700TN1D should be considered where the design requires power-line ferrite bead characteristics: one line, 0603 (1608 Metric) surface-mount package, 70Ω at 100MHz, and 3.5A maximum current rating. The Murata specification also includes cautions on surge current, solder mounting, land pattern design, and high-reliability application limitations. For aircraft, medical, transportation, power-plant control, or similar uses, consult Murata before use.
