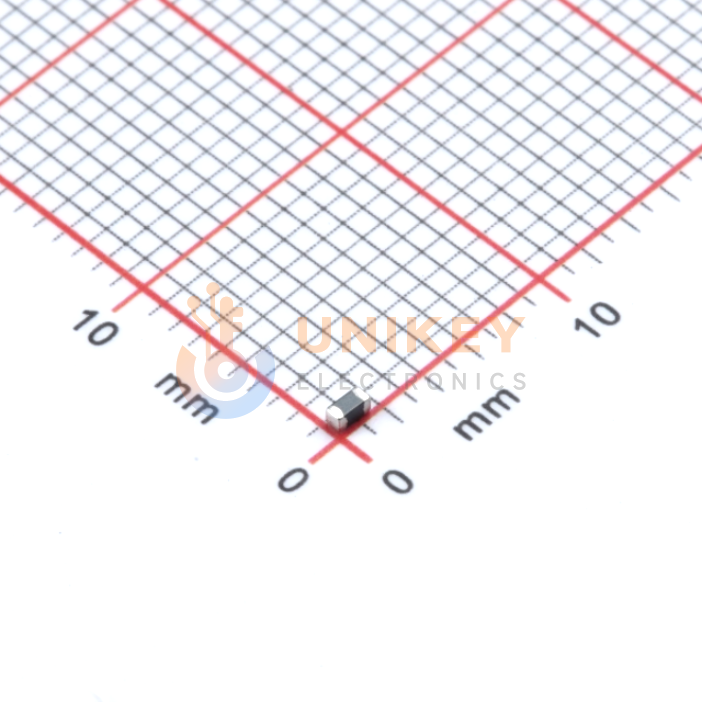

Murata BLM18KG601SN1D image
Images are for reference only

BLM18KG601SN1D

Ferrite Bead, 1.3A, 600Ω@100MHz, 150mΩ, 0603, SMD, 1.6mm × 800μm × 950μm

Other Names:BLM18KG601SN1D

Manufacturer:Murata

Manufacturer Part:BLM18KG601SN1D

Email Document
ECAD Model:

In Stock

611,453 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0154

Ext. Price (USD)

$0.77

Total price$0.77
MOQ50Mult5SPQ4,000DC2614+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0154
$0.77
500
$0.0113
$5.65
1,500
$0.0095
$14.25
4,000
$0.0082
$32.80
24,000
$0.0076
$182.40
48,000
$0.0073
$350.40
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
600 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
1.3A
DC Resistance (DCR) (Max)
150mOhm
Height (Max)
0.037" (0.95mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing BLM18KG601SN1D, keep the design within the stated rated current and temperature limits, including the datasheet current values of 1300mA at 85°C and 1000mA at 125°C. Use the manufacturer’s BLM18KG land-pattern guidance for the 0.5A to 1.5A range, apply solder mounting with supported flow or reflow conditions, and avoid surge current above the specified rating. Also consider PCB bending stress, nearby heat sources, cleaning limits, and storage conditions during assembly planning.
