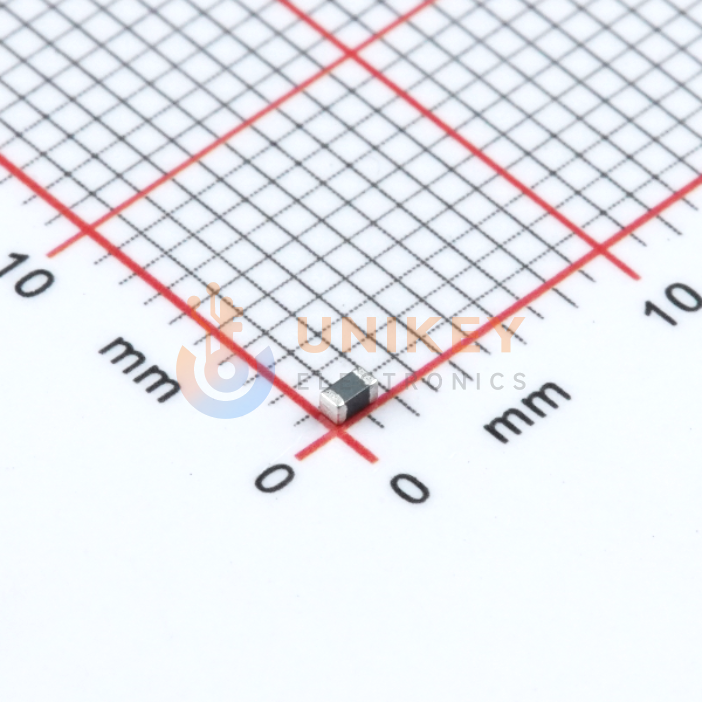

Murata BLM18KG471SN1D image
Images are for reference only

BLM18KG471SN1D

Ferrite Bead 1.5A 470Ω@100MHz 130mΩ 0603 SMD 1.6mm × 800μm × 950μm

Other Names:BLM18KG471SN1D

Manufacturer:Murata

Manufacturer Part:BLM18KG471SN1D

Email Document
ECAD Model:

In Stock

66,034 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0272

Ext. Price (USD)

$1.36

Total price$1.36
MOQ50Mult50SPQ4,000DC2550+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
20
$0.0272
$0.54
200
$0.0216
$4.32
600
$0.0185
$11.10
4,000
$0.0162
$64.80
8,000
$0.0146
$116.80
20,000
$0.0137
$274.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
470 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
1.5A
DC Resistance (DCR) (Max)
130mOhm
Height (Max)
0.037" (0.95mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Rid
1982780
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing BLM18KG471SN1D, use the datasheet limits as the design check points rather than assuming a universal EMI result. The manufacturer datasheet describes the BLM series as behaving nearly like a resistor at noise frequencies and not requiring a ground connection. Confirm the 470Ω impedance at 100MHz, rated-current derating of 1500mA at 85℃ and 1000mA at 125℃, 0.13Ω maximum DC resistance, and -55℃ to 125℃ operating range against the actual power-line conditions.
