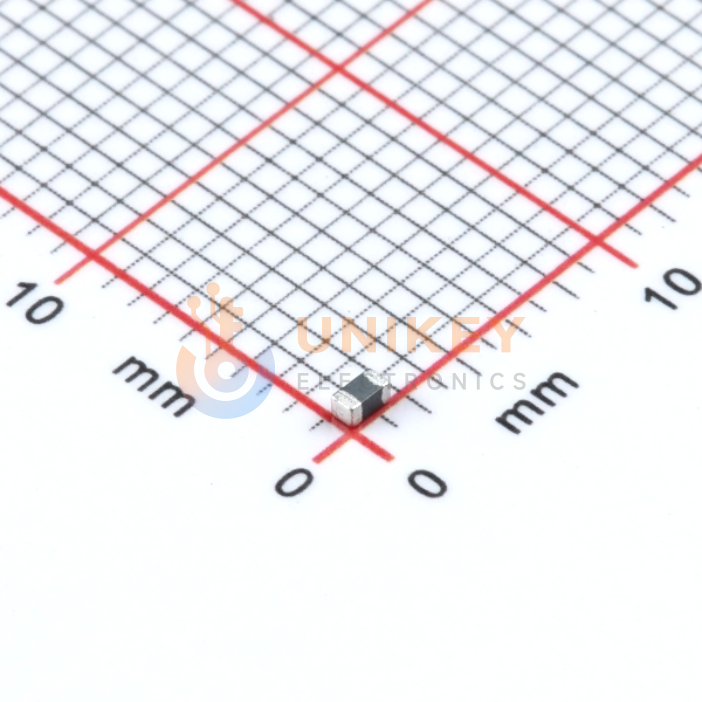

Murata BLM18KG331SN1D image
Images are for reference only

BLM18KG331SN1D

Ferrite Bead, 1.7A, 330Ω@100MHz, 80mΩ, 0603, SMD, 1.6mm × 800μm × 950μm

Other Names:BLM18KG331SN1D

Manufacturer:Murata

Manufacturer Part:BLM18KG331SN1D

Email Document
ECAD Model:

In Stock

30,459 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0193

Ext. Price (USD)

$0.09

Total price$0.09
MOQ5Mult5SPQ4,000DC2601+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0193
$0.01
4,000
$0.0154
$61.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
330 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
1.7A
DC Resistance (DCR) (Max)
80mOhm
Height (Max)
0.037" (0.95mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The Murata Manufacturing BLM18KG331SN1D is listed by the manufacturer for DC power line use. For circuit selection, engineers should confirm that the 330±25% impedance at 100MHz, 1700mA rated current at 85°C, 1000mA rating at 125°C, and 0.080Ω max initial DC resistance fit the target power rail conditions. The datasheet also notes current derating for ratings above 1A depending on operating temperature.
