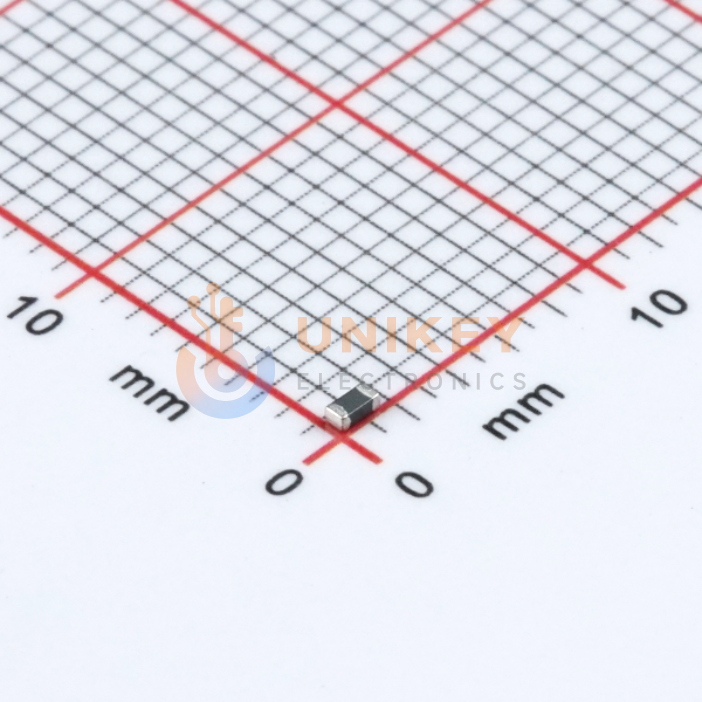

Murata BLM18KG300TN1D image
Images are for reference only

BLM18KG300TN1D

Ferrite Bead 5A 30Ω@100MHz 10mΩ 0603 SMD, 1.6mm × 800μm × 750μm

Other Names:BLM18KG300TN1D

more
BLM18KG300TN1D

Manufacturer:Murata

Manufacturer Part:BLM18KG300TN1D

Email Document
ECAD Model:

In Stock

7,256 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0207

Ext. Price (USD)

$1.03

Total price$1.03
MOQ50Mult50SPQ4,000DC2619+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0207
$1.03
150
$0.0189
$2.83
500
$0.0171
$8.55
1,500
$0.0161
$24.15
4,000
$0.0155
$62.00
24,000
$0.0149
$357.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
30 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
5A
DC Resistance (DCR) (Max)
10mOhm
Height (Max)
0.030" (0.75mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Rid
2260756
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

When using Murata Manufacturing BLM18KG300TN1D for power-line noise suppression, keep the design within the rated current and DC resistance limits and account for the datasheet derating guidance above 1A across operating temperature. The documentation also cautions against excessive surge current beyond the specified rating. For PCB use, treat it as a solder-mounted chip ferrite bead and confirm land pattern, soldering profile, and thermal/mechanical stress conditions against the manufacturer datasheet before release.
