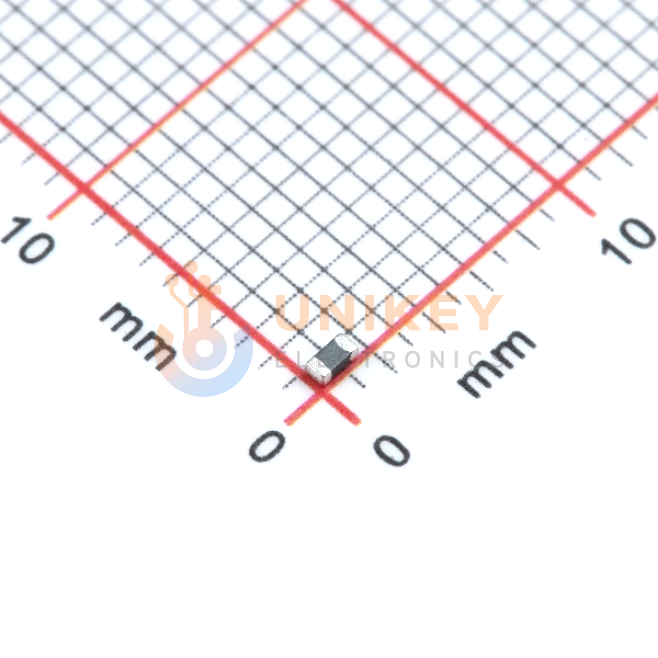

Murata BLM18KG121TZ1D image
Images are for reference only

BLM18KG121TZ1D

Ferrite Bead 3A 120Ω@100MHz 30mΩ SMD 0603 1.6mm × 800μm × 750μm

Other Names:BLM18KG121TZ1D

Manufacturer:Murata

Manufacturer Part:BLM18KG121TZ1D

Email Document
ECAD Model:

In Stock

39,247 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.015

Ext. Price (USD)

$0.75

Total price$0.75
MOQ50Mult50SPQ4,000DC2623+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.015
$0.01
4,000
$0.0119
$47.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
120 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
3A
DC Resistance (DCR) (Max)
30mOhm
Height (Max)
0.030" (0.75mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
AEC-Q200
Rid
7363481
Series
EMIFIL®, BLM18
