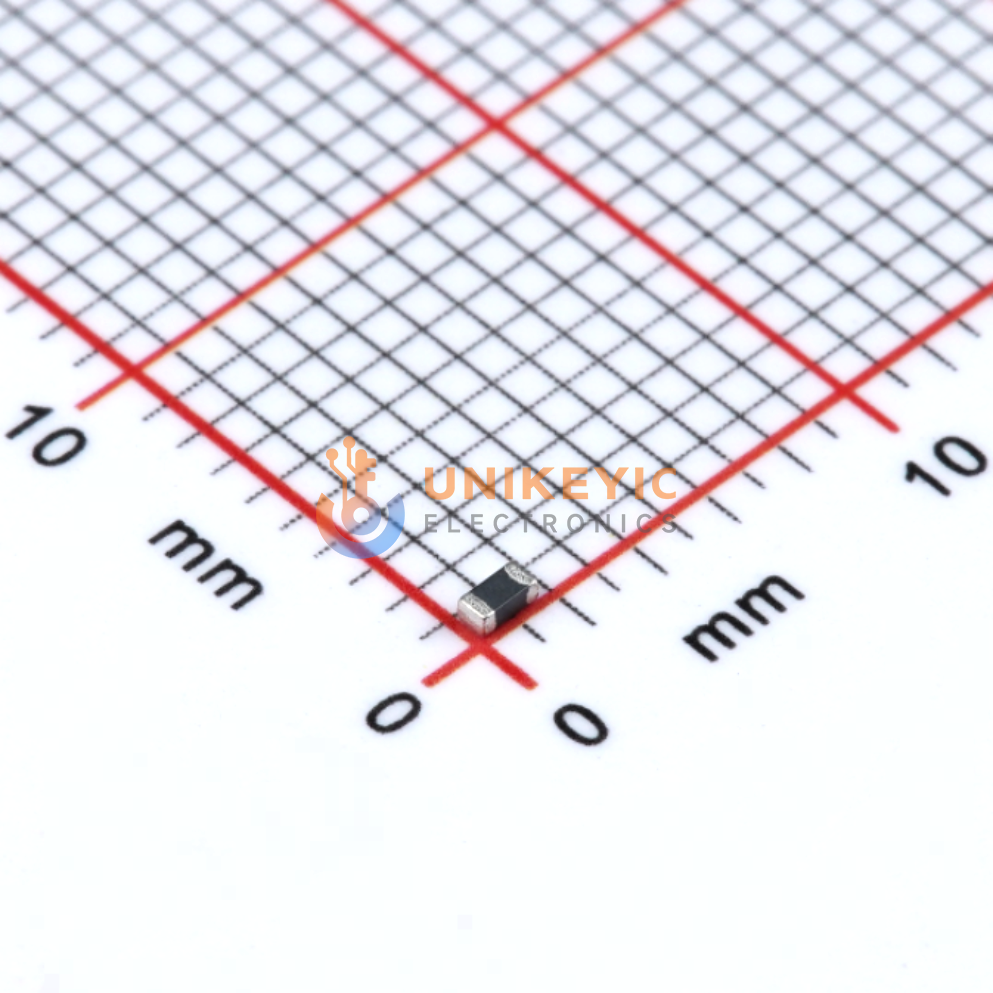

Murata BLM18KG121TN1D image
Images are for reference only

BLM18KG121TN1D

Ferrite Bead 3A 120Ω@100MHz 30mΩ SMD 0603 1.6mm × 800μm × 750μm

Other Names:BLM18KG121TN1D

Manufacturer:Murata

Manufacturer Part:BLM18KG121TN1D

Email Document
ECAD Model:

In Stock

44,236 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0144

Ext. Price (USD)

$0.72

Total price$0.72
MOQ50Mult50SPQ4,000DC2636+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0144
$0.01
4,000
$0.0114
$45.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
120 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
3A
DC Resistance (DCR) (Max)
30mOhm
Height (Max)
0.030" (0.75mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Rid
1982792
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing BLM18KG121TN1D, the manufacturer datasheet specifies 120±25% impedance at 100MHz and notes that the resistance element becomes dominant at high frequencies. When selecting this part, engineers should compare that impedance point with the circuit’s noise spectrum and confirm current derating: 3000mA at 85°C and 1000mA at 125°C. The product specifications also list a 3A maximum current rating and 30mOhm maximum DCR.
