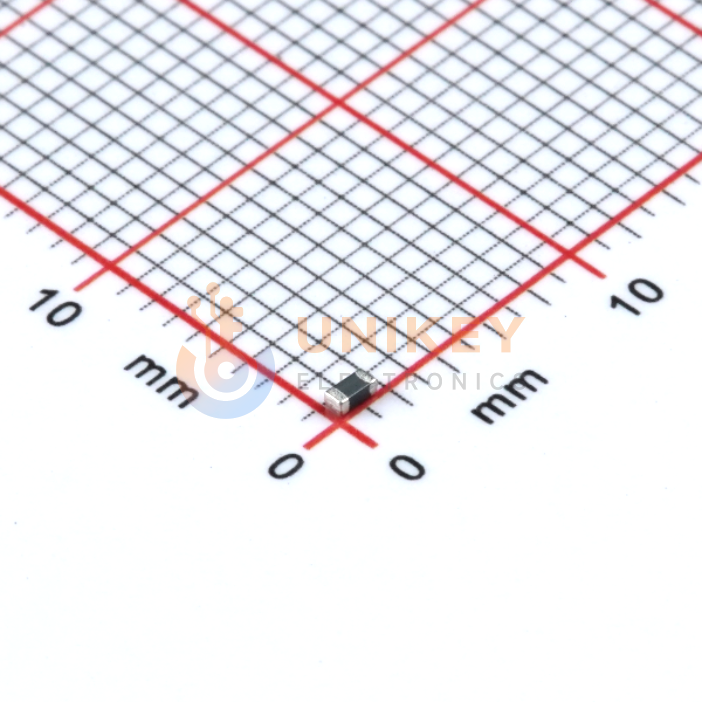

Murata BLM18KG101TN1D image
Images are for reference only

BLM18KG101TN1D

3A 100Ω@100MHz 30mΩ 0603 SMD Ferrite Bead, 1.6mm × 800μm × 750μm

Other Names:BLM18KG101TN1D

Manufacturer:Murata

Manufacturer Part:BLM18KG101TN1D

Email Document
ECAD Model:

In Stock

14,086 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0146

Ext. Price (USD)

$0.73

Total price$0.73
MOQ50Mult50SPQ4,000DC2610+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0146
$0.01
4,000
$0.0116
$46.40
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
100 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
3A
DC Resistance (DCR) (Max)
30mOhm
Height (Max)
0.030" (0.75mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18KG
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

Within the Murata BLM18 reference specification, BLM18KG101TN1D should be compared by its exact row, not only by the BLM18 series name. Its row lists 100±25% Ω at 100MHz, 3000mA at 85°C, 1900mA at 125°C, and DC resistance of 0.030Ω max initial and 0.040Ω max after testing. Other Murata BLM18 entries in the same document have different impedance values, current ratings, resistance limits, remarks, or thickness groups.
