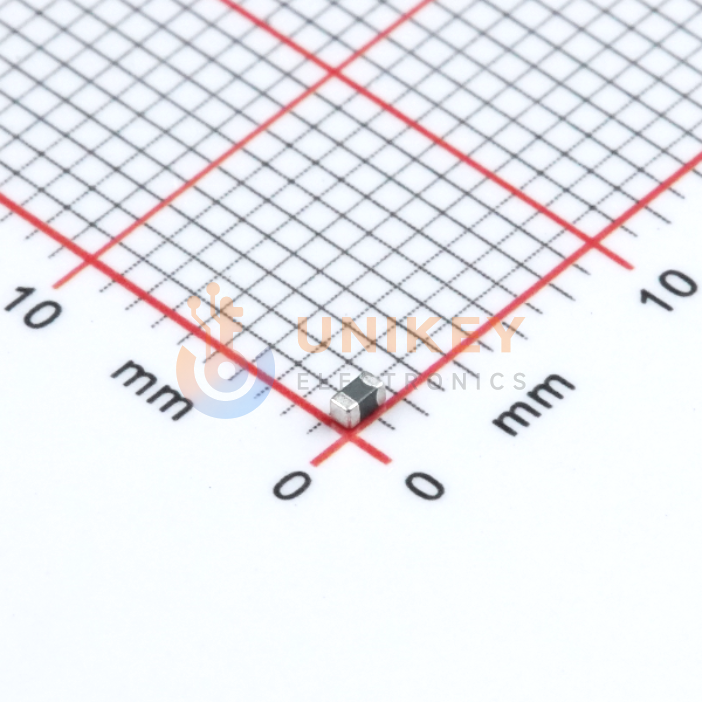

Murata BLM18BD601SN1D image
Images are for reference only

BLM18BD601SN1D

200mA 600Ω@100MHz 650mΩ 0603 SMD 1.6mm × 800μm × 950μm

Other Names:BLM18BD601SN1D

Manufacturer:Murata

Manufacturer Part:BLM18BD601SN1D

Email Document
ECAD Model:

In Stock

103,890 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0078

Ext. Price (USD)

$0.39

Total price$0.39
MOQ50Mult50SPQ4,000DC2522+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0078
$0.00
4,000
$0.0062
$24.80
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
600 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
200mA
DC Resistance (DCR) (Max)
650mOhm
Height (Max)
0.037" (0.95mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM18BD
Filter Type
Signal Line
Mounting Type
Surface Mount
Ratings
-
Rid
584234
Series
EMIFIL®, BLM18

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

Murata Manufacturing BLM18BD601SN1D can be evaluated for high-frequency signal-line noise suppression because the Murata specifications list BLM18BD parts for high-speed signal line use and specify impedance at 100MHz. Engineers should confirm that the 600±25% Ω impedance point, 200mA rated current, DC resistance limits, 0603 package, and -55°C to +125°C operating range match the actual circuit conditions. Do not assume interchangeability with other beads without checking their datasheets.
