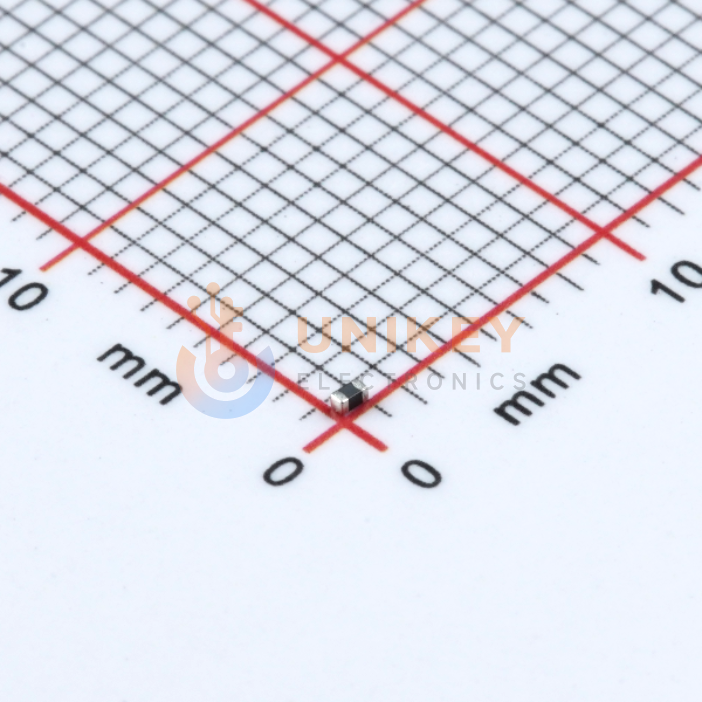

Murata BLM15PX331SN1D image
Images are for reference only

BLM15PX331SN1D

1.2A 330Ω@100MHz 150mΩ 0402 SMD mount 1mm*550μm*550μm

Other Names:BLM15PX331SN1D

Manufacturer:Murata

Manufacturer Part:BLM15PX331SN1D

Email Document
ECAD Model:

In Stock

70,085 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.011

Ext. Price (USD)

$0.05

Total price$0.05
MOQ5Mult5SPQ10,000DC2547+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.011
$0.01
10,000
$0.009
$90.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
330 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
1.2A
DC Resistance (DCR) (Max)
150mOhm
Height (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.022" W (1.00mm x 0.55mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM15PX
Filter Type
Power Line
Mounting Type
Surface Mount
Ratings
-
Rid
5332905
Series
EMIFIL®, BLM15

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

According to the Murata BLM15PX series specifications, BLM15PX331SN1D sits between lower- and higher-impedance BLM15PX options. It is specified at 330±25% impedance at 100MHz, with 1200mA rated current at 85°C and 700mA at 125°C. For comparison, BLM15PX221SN1D is 220±25% with 1400mA / 800mA, while BLM15PX471SN1D is 470±25% with 1000mA / 600mA. Do not treat these as drop-in substitutes without checking all design requirements.
