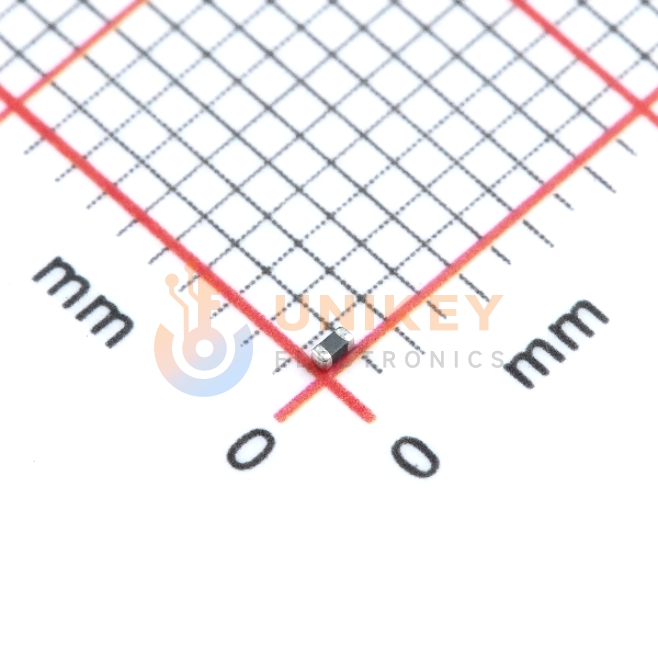

Murata BLM15HD601SN1D image
Images are for reference only

BLM15HD601SN1D

300mA 600Ω@100MHz 850mΩ 0402 SMD Ferrite Bead, 1mm × 550μm × 550μm

Other Names:BLM15HD601SN1D

Manufacturer:Murata

Manufacturer Part:BLM15HD601SN1D

Email Document
ECAD Model:

In Stock

44,941 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0095

Ext. Price (USD)

$0.47

Total price$0.47
MOQ50Mult50SPQ10,000DC2605+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0095
$0.00
10,000
$0.0078
$78.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
600 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
300mA
DC Resistance (DCR) (Max)
850mOhm
Height (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.022" W (1.00mm x 0.55mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM15HD
Filter Type
Signal Line
Mounting Type
Surface Mount
Ratings
-
Rid
1016262
Series
EMIFIL®, BLM15
