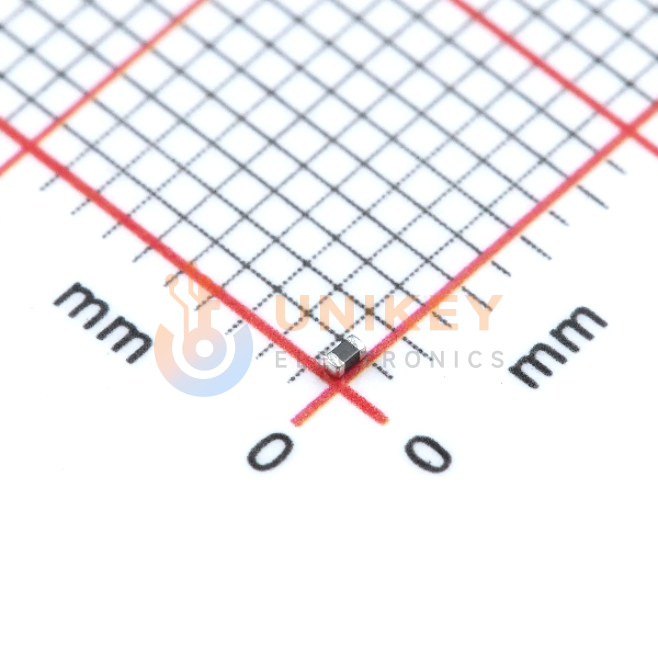

Murata BLM15AX102SZ1D image
Images are for reference only

BLM15AX102SZ1D

350mA 1kΩ@100MHz 490mΩ 0402 Ferrite Bead, SMD, 1mm × 550μm × 550μm

Other Names:BLM15AX102SZ1D

Manufacturer:Murata

Manufacturer Part:BLM15AX102SZ1D

Email Document
ECAD Model:

In Stock

62,010 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.016

Ext. Price (USD)

$0.80

Total price$0.80
MOQ50Mult50SPQ10,000DC2549+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.016
$0.80
500
$0.0124
$6.20
1,500
$0.0104
$15.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
1 kOhms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
350mA
DC Resistance (DCR) (Max)
490mOhm
Height (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.022" W (1.00mm x 0.55mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM15AX
Filter Type
Power, Signal Line
Mounting Type
Surface Mount
Ratings
AEC-Q200
Rid
7362956
Series
BLM
